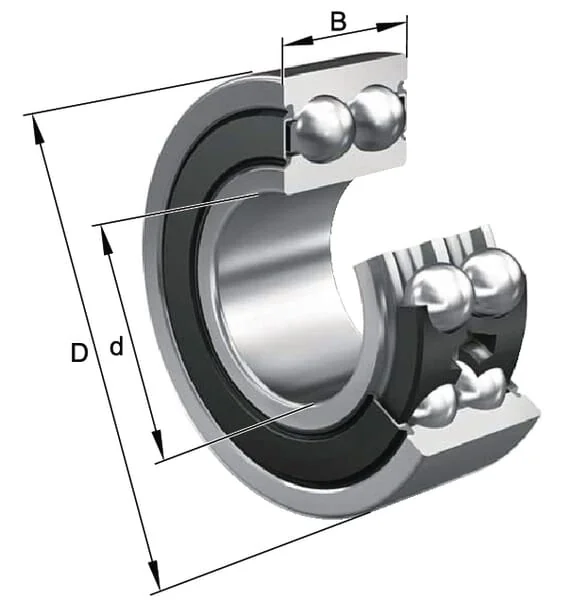

INA FAG - 3203BDXLTVHC3 - Angular Contact Ball Bearing
INA FAG - 3203BDXLTVHC3 - Angular Contact Ball Bearing
INA FAG - 3203BDXLTVHC3 - Angular Contact Ball Bearing
INA FAG - 3203BDXLTVHC3 - Angular Contact Ball Bearing

In stock - ready to ship

Order now for delivery between 13 July and 16 July
Free shipping on orders over €60

Pay Securely with

INA FAG - 3203BDXLTVHC3 - Angular Contact Ball Bearing

INA FAG - 3203BDXLTVHC3 - Angular Contact Ball Bearing

€28.98

(Excl. VAT)

Price

(Excl. VAT)

€28.98

INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
3203bdxltvhc3
Unit
Each
BWidth
17,5 mm
Weight
0,091 kg
Sealing
Open
Regreasable
Yes
Rows number
2
Contact angle
30 °
dInside diameter
17 mm
DOutside diameter
40 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
19400 r/min
Ref rotation speed
16600 r/min
Basic radial load static
9500 N
Basic radial load dynamic
15500 N
Radial internal clearance code
C3
EAN
4012802482065
Manufacturer
INA/FAG
