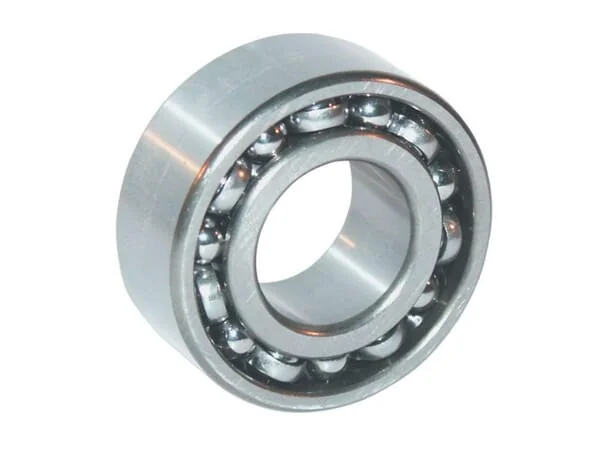

INA FAG - 3213BTVH - Double Row Angular Contact Bearing

OEM Supplier

SKU: ina-fag-3213btvh

INA FAG - 3213BTVH - Double Row Angular Contact Bearing

€137.49

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€137.49

The INA-FAG 3213BTVH is a high-quality double row angular contact ball bearing designed for applications requiring high radial and axial loads. Featuring a 65mm bore diameter, 120mm outer diameter, and 46mm width, this genuine FAG bearing provides robust performance and precision. It is engineered for durability and efficient operation in demanding industrial and agricultural machinery.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
3213btvh
Unit
Each
BWidth
38,1 mm
Weight
0,016 kg
Sealing
Open
Regreasable
Yes
Rows number
2
Contact angle
30 °
dInside diameter
65 mm
DOutside diameter
120 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
5700 r/min
Ref rotation speed
4500 r/min
Basic radial load static
77000 N
Basic radial load dynamic
86000 N
Radial internal clearance code
CN
EAN
4012802398755
Manufacturer
INA/FAG
