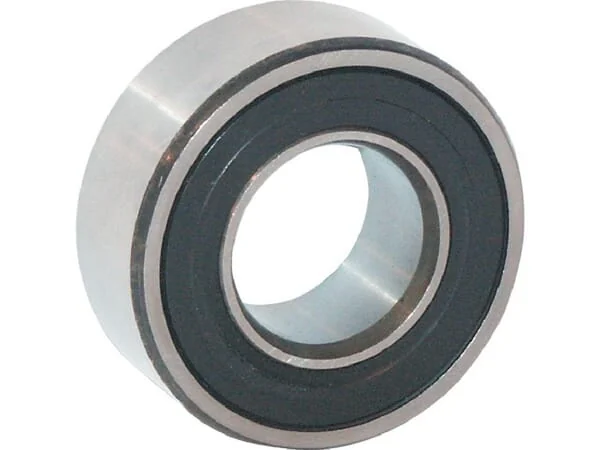

INA FAG - 3305B2RSRTVH - Angular Contact Bearing Double Row
INA FAG - 3305B2RSRTVH - Angular Contact Bearing Double Row
INA FAG - 3305B2RSRTVH - Angular Contact Bearing Double Row
INA FAG - 3305B2RSRTVH - Angular Contact Bearing Double Row

In stock - ready to ship

Order now for delivery between 14 May and 18 May
Free shipping on orders over €60

Pay Securely with

INA FAG - 3305B2RSRTVH - Angular Contact Bearing Double Row

INA FAG - 3305B2RSRTVH - Angular Contact Bearing Double Row

€52.88

(Excl. VAT)

Price

(Excl. VAT)

€52.88

Product Description

The INA-FAG 3305B2RSRTVH is a high-quality double row angular contact ball bearing designed for applications requiring high rigidity and the ability to accommodate combined loads. It features a 25mm bore diameter, 62mm outer diameter, and 24mm width. The bearing is equipped with 2RSR contact seals on both sides to protect against contaminants and retain lubricant, ensuring extended service life. The TVH designation indicates a plastic cage, ball-guided, and the 'B' denotes a 25-degree contact angle. This genuine Schaeffler Group (INA-FAG) bearing provides reliable performance in various industrial and agricultural machinery.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
BWidth
25,4 mm
Weight
0,352 kg
Sealing
2RS
Regreasable
No
Rows number
2
Contact angle
30 °
dInside diameter
25 mm
DOutside diameter
62 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
9300 r/min
Ref rotation speed
6700 r/min
Basic radial load static
21000 N
Basic radial load dynamic
31500 N
Radial internal clearance code
CN
Manufacturer
INA/FAG
