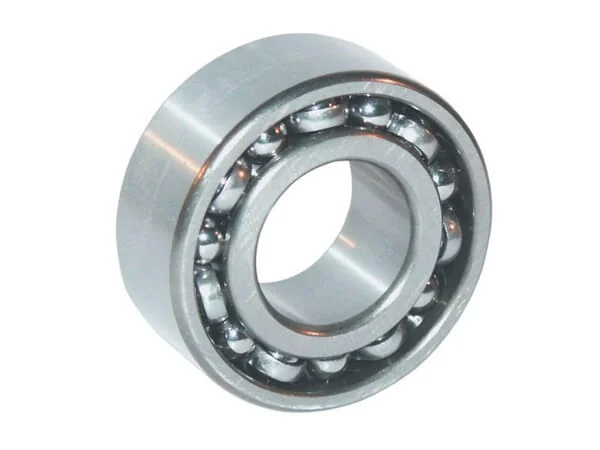

INA FAG - 3309BTVH - Angular Contact Bearing Double Row
INA FAG - 3309BTVH - Angular Contact Bearing Double Row
INA FAG - 3309BTVH - Angular Contact Bearing Double Row
INA FAG - 3309BTVH - Angular Contact Bearing Double Row

In stock - ready to ship

Ships within 120 hours
Free shipping

Pay Securely with

INA FAG - 3309BTVH - Angular Contact Bearing Double Row

INA FAG - 3309BTVH - Angular Contact Bearing Double Row

€102.52

(Excl. VAT)

Price

(Excl. VAT)

€102.52

Product Description

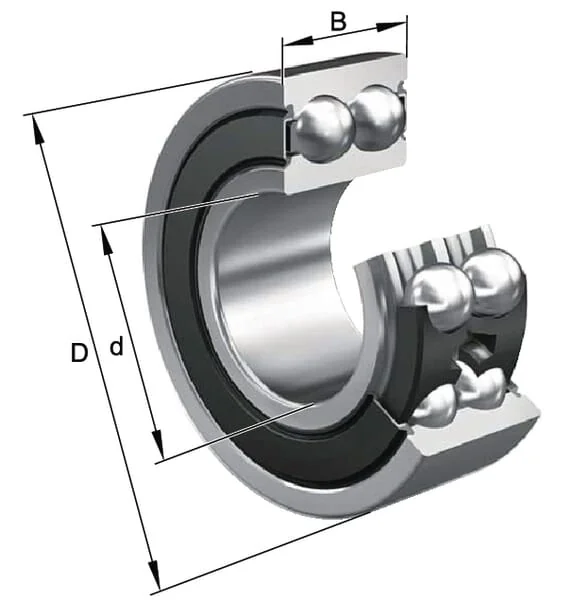

The FAG 3309BTVH is a high-quality double row angular contact ball bearing, manufactured by FAG (Schaeffler Group). This robust bearing is designed to accommodate combined radial and axial loads and provide high rigidity for demanding industrial applications. It features a 45mm bore diameter, 100mm outer diameter, and a width of 39.7mm. The bearing incorporates a durable solid window cage made of glass fibre reinforced polyamide 66, ensuring reliable performance and extended service life.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
3309btvh
Unit
Each
BWidth
39,7 mm
Weight
0,131 kg
Sealing
Open
Regreasable
Yes
Rows number
2
Contact angle
30 °
dInside diameter
45 mm
DOutside diameter
100 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
7300 r/min
Ref rotation speed
6000 r/min
Basic radial load static
54000 N
Basic radial load dynamic
72000 N
Radial internal clearance code
CN
EAN
4012802405002
Manufacturer
INA/FAG
