INA FAG - 3314BD - Angular Contact Ball Bearing
INA FAG - 3314BD - Angular Contact Ball Bearing

In stock - ready to ship

Order now for delivery between 11 May and 14 May
Free shipping

Pay Securely with

INA FAG - 3314BD - Angular Contact Ball Bearing

INA FAG - 3314BD - Angular Contact Ball Bearing

€277.81

(Excl. VAT)

Price

(Excl. VAT)

€277.81

Product Description

The FAG 3314BD is a genuine double row angular contact ball bearing, manufactured by Schaeffler. It features a bore diameter of 70 mm, an outer diameter of 150 mm, and a width of 63.5 mm. This robust bearing is designed to accommodate high radial and axial loads in both directions, making it suitable for demanding industrial applications. With a dynamic load rating of 136 kN and a static load rating of 100 kN, it ensures reliable performance and longevity.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
ina-fag
Bore Diameter (mm)
70
Outer Diameter (mm)
150
Width (mm)
63.5
Weight (kg)
3.7
Dynamic Load Rating (kN)
136
Static Load Rating (kN)
100
Limiting Speed (rpm)
4000
Reference Speed (rpm)
3000
Fatigue Limit Load (kN)
4.2
Bearing Type
Double Row Angular Contact Ball Bearing
Designation
BD
Quality
OEM Supplier
Manufacturer
ina-fag

Similar items you might like

  • INA FAG

    INA FAG - 3316 - Angular Contact Ball Bearing

    INA FAG

    €404.88

  • INA FAG

    INA FAG - 3314C3 - Angular Contact Ball Bearing

    INA FAG

    €182.62

  • INA FAG

    INA FAG - 3314BDXLC3 - Angular Contact Ball Bearing

    INA FAG

    €277.81

  • INA FAG

    INA FAG - 3318M - Angular Contact Ball Bearing

    INA FAG

    €577.14

  • INA FAG

    INA FAG - 3317M - Angular Contact Ball Bearing

    INA FAG

    €314.77

  • INA FAG

    INA FAG - 3316C3 - Angular Contact Ball Bearing

    INA FAG

    €381.85

  • INA FAG

    INA FAG - 3318MC3 - Angular Contact Ball Bearing

    INA FAG

    €592.97

  • INA FAG

    INA FAG - 3319M - Angular Contact Ball Bearing

    INA FAG

    €849.40

  • INA FAG

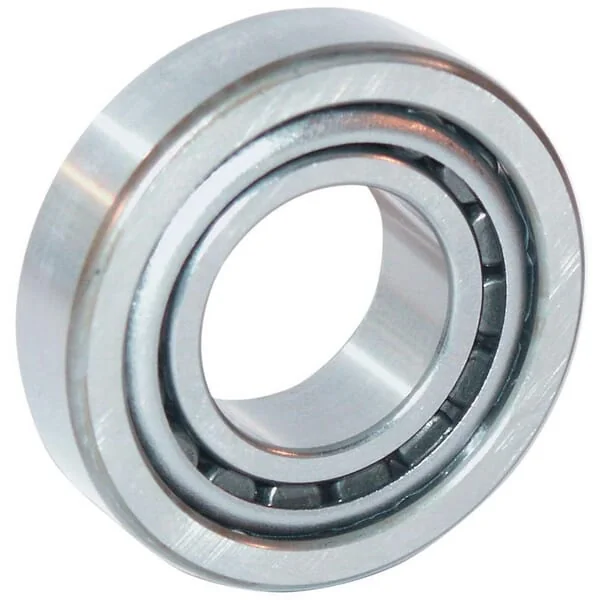

    INA FAG - 33206A - Tapered Roller Bearing
