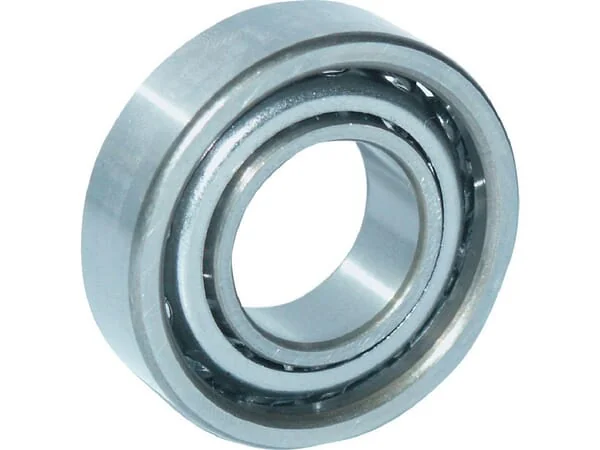

INA FAG - 7304BXLTVPUO - Angular Contact Ball Bearing
INA FAG - 7304BXLTVPUO - Angular Contact Ball Bearing
INA FAG - 7304BXLTVPUO - Angular Contact Ball Bearing
INA FAG - 7304BXLTVPUO - Angular Contact Ball Bearing
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

INA FAG - 7304BXLTVPUO - Angular Contact Ball Bearing

INA FAG - 7304BXLTVPUO - Angular Contact Ball Bearing

€40.03

(Excl. VAT)

Price

(Excl. VAT)

€40.03

Product Description

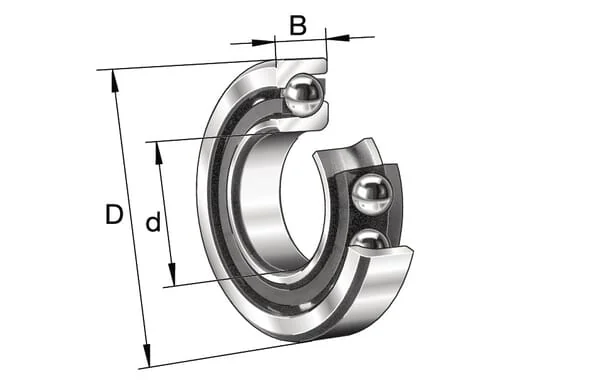

The FAG 7304-B-XL-TVP-UO is a high-performance X-life single row angular contact ball bearing, featuring a 20 mm bore, 52 mm outer diameter, and 15 mm width. Designed for demanding applications, it incorporates a 40-degree contact angle (B) and a durable TVP solid window cage made from glass fibre reinforced polyamide. The UO designation signifies its universal matchability for pair mounting in an O arrangement, offering flexibility for various industrial machinery configurations. It boasts a basic dynamic load rating of 24.5 kN and a static load rating of 13.7 kN.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Equivalent OEM Part Numbers

Skf

7304BEP

Nsk

7304B

Ntn

7304B

Koyo

7304B
Unit
Each
BWidth
15 mm
Weight
0,145 kg
Sealing
Open
Regreasable
Yes
Rows number
1
Contact angle
40 °
dInside diameter
20 mm
DOutside diameter
52 mm
Bearing model type
Angular contact ball bearings
Max rotation speed
19300 r/min
Ref rotation speed
11500 r/min
Basic radial load static
11100 N
Basic radial load dynamic
20400 N
Radial internal clearance code
CN
Manufacturer
INA/FAG
