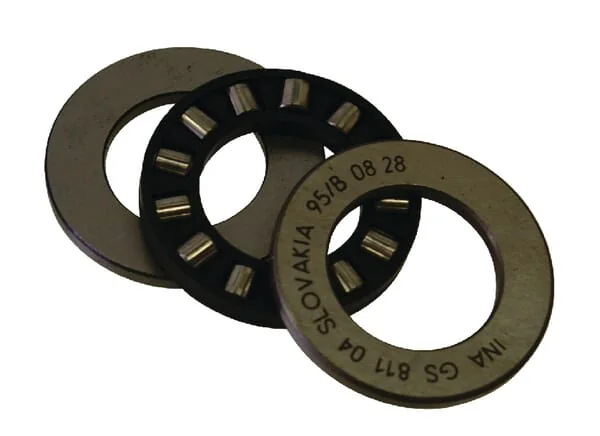

INA FAG - 81103TV - INA Axial Cylindrical Roller Bearing

OEM Supplier

SKU: ina-fag-81103tv

INA FAG - 81103TV - INA Axial Cylindrical Roller Bearing

€32.85

(excl. VAT)

In stock - ready to ship

Ships within 52 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€32.85

The INA 81103-TV is a high-quality axial cylindrical roller bearing designed for applications requiring high axial load capacity and rigidity. This genuine INA bearing features a 17mm inner diameter, a 35mm outer diameter, and a 10mm width, ensuring precise fitment and reliable performance in various industrial machinery.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
81103tv
Unit
Each
Speed
5400 r/min
Height
9 mm
TWidth
9 mm
Sealing
Open
Properties
Absorbs axial forces in 1 direction Low axial installation height High load-bearing capacity
Consists of
Cylindrical roller and cage assembly Housing disc Shaft disc
Bore diameter
17 mm
dInside diameter
17 mm
Application range
Reductors Gearbox
DOutside diameter
30 mm
Basic axial load static
33500 N
Basic axial load dynamic
15900 N
D1Inside diameter of outer ring
18 mm
d1Outside diameter of inner ring
30 mm
Limiting speeds (rpm) Grease lub.
12300 r/min
EAN
4012802719833
Manufacturer
INA/FAG
