INA FAG - AY20NPP - Locking Bearing
OEM Supplier
SKU: ina-fag-ay20npp




€20.20
(excl. VAT)In stock - ready to ship
Ships within 48 hours
Free shipping on orders over €60
Pay Securely with

INA FAG - AY20NPP - Locking Bearing
€20.20
(Excl. VAT)
Price
(Excl. VAT)
€20.20

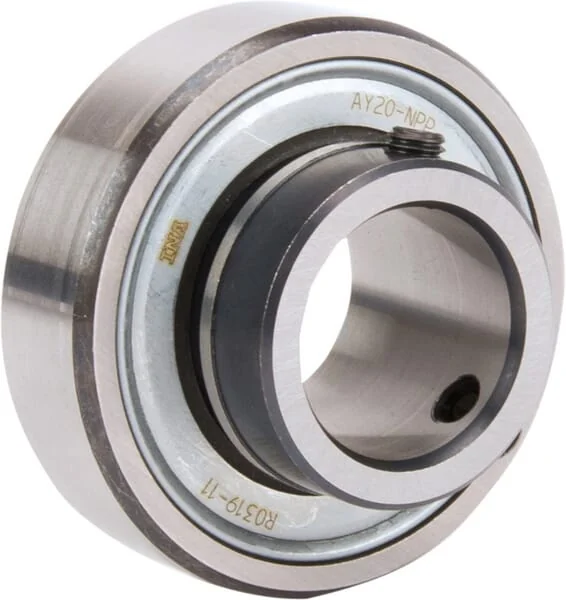

The INA-FAG AY20NPP is a high-quality radial insert ball bearing designed for reliable rotational support in various industrial and agricultural applications. It features a 20mm bore diameter, a 47mm outer diameter, and an overall width of 31mm. This bearing is equipped with a spherical outer ring to accommodate initial misalignment and an eccentric locking collar for secure and easy shaft attachment, ensuring stable performance.
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components.
The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments.
At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao.
INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.
Product Details
Brand
Part Numbers
ay20npp
Unit
Each
Weight
0,13 kg
Properties
One-sided extended inner ring with 2 adjusting screws Flat outer ring with no lubrication holes P seal Polyamide housing
Inner ring width
25 mm
dInside diameter
20 mm
Application range
Mobile mechanical engineering Stationary mechanical engineering
BOuter ring width
14 mm
DOutside diameter
47 mm
Basic radial load static
6600 N
Basic radial load dynamic
12800 N
EAN
4012802794847
Manufacturer
INA/FAG
