INA FAG - GIKR12PWAINA - Rod Head

OEM Supplier

SKU: ina-fag-gikr12pwaina

INA FAG - GIKR12PWAINA - Rod Head

€31.10

(excl. VAT)

In stock - ready to ship

Ships within 48 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€31.10

INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Type
Female thread
Unit
Each
Thread
M12
Weight
0.12 kg

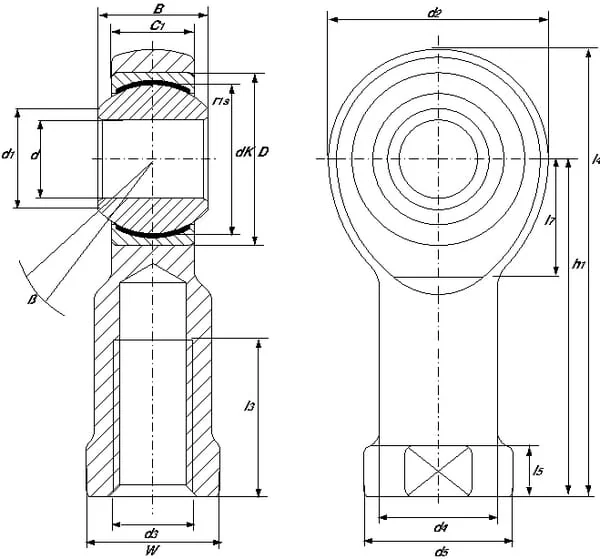

d2Width
32 mm
d3Thread
M12 mm
l4Length
66 mm
L5Length L5
6,5 mm
L7Length L7
17 mm
Thread type
Right Hand
D4Diameter D4
17.5 mm
C1Height house
12 mm
Inner diameter
12.00 mm
Technical info
PW - maintenance free (steel/PTFE material)
l3Thread length
22 mm
Thread direction
Right
dInside diameter
12 mm
Surface treatment
Zinc-plated
BHeight inner ring
16 mm
d5Outside diameter
32.00 mm
Connection diameter
22 mm
WOutside diameter basis
19 mm
dKOutside diameter ball
22.22 mm
Basic load ratings dyn. C
24000 N
DOutside diameter bearing
26 mm
Basic load ratings Stat. Co
20800 N
Suitable for original number
GIKR12-PW-A
d1Outside diameter innerring
15.4 mm
h1Distance basis center shaft
50 mm
EAN
4012802523188
Manufacturer
INA/FAG
