INA FAG - GLE40KRRB - Bearing Insert
INA FAG - GLE40KRRB - Bearing Insert
INA FAG - GLE40KRRB - Bearing Insert
INA FAG - GLE40KRRB - Bearing Insert
INA FAG - GLE40KRRB - Bearing Insert

In stock - ready to ship

Ships within 120 hours
Free shipping on orders over €60

Pay Securely with

INA FAG - GLE40KRRB - Bearing Insert

INA FAG - GLE40KRRB - Bearing Insert

€51.82

(Excl. VAT)

Price

(Excl. VAT)

€51.82

Product Description

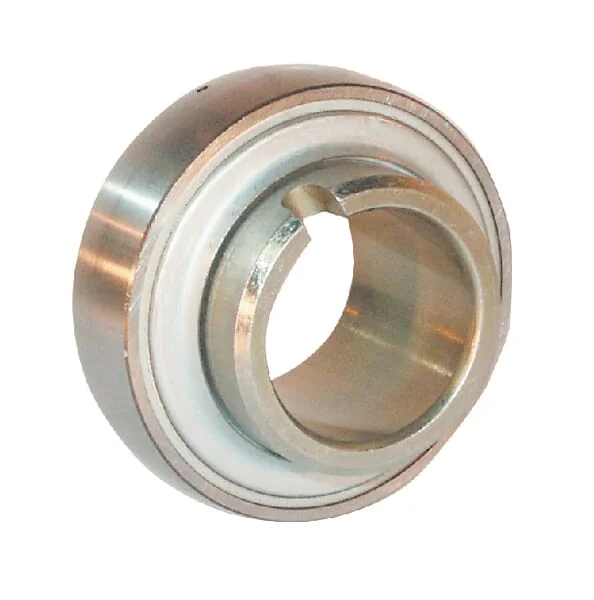

The INA-FAG GLE40KRRB is a high-quality ball bearing insert featuring a 40mm bore diameter and an 80mm outer diameter. This robust bearing is designed with a spherical outer ring, which allows for initial misalignment compensation, and is securely fastened by grub screws. It incorporates RSR seals for effective protection against contaminants, ensuring reliable performance in demanding agricultural, construction, and various industrial machinery applications. With a dynamic load rating of 29.5 kN and a static load rating of 15.3 kN, this bearing insert offers durability and efficiency.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
gle40krrb
Unit
Each
Weight
0,56 kg
Properties
Extended inner ring with indentation on both sides Convex outer ring with lubricating holes R seal with Teflon sealing lips Inner ring up to wheel spindle 60mm in Corrotect design
Sealing width
23,5 mm
Inside diameter
40 mm
Inner ring width
42,9 mm
Outer ring width
21 mm
Outside diameter
80 mm
Application range
Mobile mechanical engineering Stationary mechanical engineering
Max working temperature
150 °C
Min working temperature
-40 °C
Basic radial load static
19800 N
Basic radial load dynamic
34500 N
Ball centre to end distance
15,9 mm
Outside diameter of inner ring
52,3 mm
Ball centre to grease hole distance
6,2 mm
EAN
4012802799576
Manufacturer
INA/FAG
