INA FAG - GRA102NPPB - Inner Bearing

OEM Supplier

SKU: ina-fag-gra102nppb

INA FAG - GRA102NPPB - Inner Bearing

€28.27

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€28.27

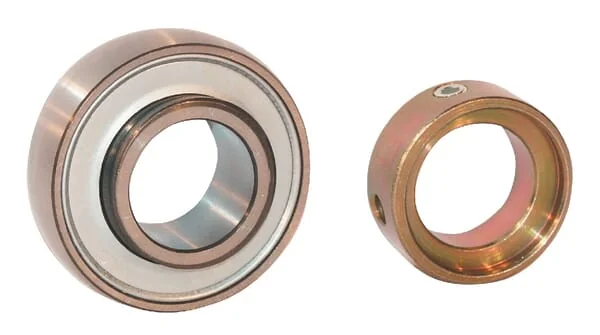

The INA-FAG GRA102NPPB is a high-quality insert bearing designed for reliability in demanding agricultural and industrial machinery. This genuine FAG bearing features a spherical outer ring, allowing for initial misalignment compensation. It is equipped with a standard inner ring, a bore diameter of 1.000 inches (25.4 mm), and is sealed on both sides to protect against contaminants, ensuring extended service life. Ideal for applications requiring robust and durable bearing solutions.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
gra102nppb
OEM Part Numbers

John Deere

Case Ih

New Holland

Massey Ferguson

Unit
Each
Properties
One-sided extended inner ring with clamp ring Inch bore Convex outer ring with lubricating holes P seal Polyamide housing
Consists of
Clamp bearing Clamp ring
Inside diameter
1-1/8 Inch
dInside diameter
28,575 mm
Application range
Mobile mechanical engineering Stationary mechanical engineering
BOuter ring width
18 mm
CInner ring width
23,8 mm
DspOutside diameter
62 mm
EBall centre to end distance
9 mm
FOutside diameter of inner ring
37,4 mm
RLocking collar outside diameter
44 mm
GBall centre to grease hole distance
5 mm
B1Locking collar and inner ring width
35,7 mm
EAN
4047643205894
Manufacturer
INA/FAG
