INA FAG - GRAE17NPPB - RLS SA203

OEM Supplier

SKU: ina-fag-grae17nppb

INA FAG - GRAE17NPPB - RLS SA203

€19.09

(excl. VAT)

In stock - ready to ship

Ships within 76 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€19.09

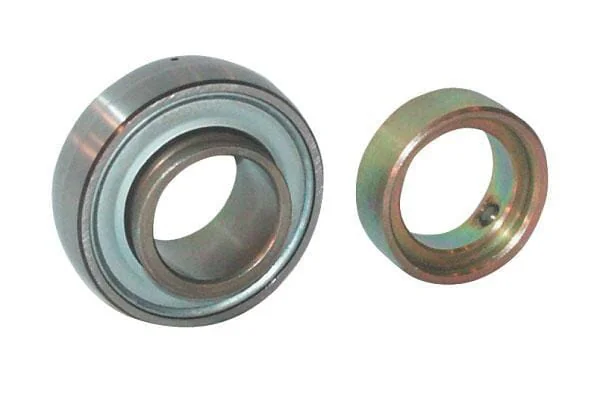

The FAG GRAE17NPPB is a high-quality radial insert ball bearing designed for demanding applications, particularly in agricultural machinery. This bearing features a spherical outer ring, allowing for initial misalignment compensation, and a P-type seal for enhanced protection against contaminants. It is equipped with a grub screw locking mechanism for secure shaft attachment. With an inner diameter of 17 mm, an outer diameter of 40 mm, and a width of 20 mm, it ensures reliable performance and durability in various operational conditions.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
grae17nppb
Equivalent OEM Part Numbers
[Object Object], [Object Object], [Object Object], [Object Object], [Object Object], [Object Object], [Object Object], [Object Object], [Object Object]
Equivalent AM Part Numbers
[Object Object]
Unit
Each
Weight
0,1 kg
Includes
Clamp bearing Clamp ring
dInside diameter
17 mm
BOuter ring width
12 mm
CInner ring width
19 mm
DspOutside diameter
40 mm
SWWrench/Spanner size
3.0 mm
Basic radial load static
4750 N
Basic radial load dynamic
10100 N
EBall centre to end distance
6,5 mm
FOutside diameter of inner ring
23 mm
RLocking collar outside diameter
28 mm
GBall centre to grease hole distance
3,3 mm
B1Locking collar and inner ring width
28,6 mm
EAN
4012802800883
Manufacturer
INA/FAG
