INA FAG - GRAE60NPPB - Span Bearing

OEM Supplier

SKU: ina-fag-grae60nppb

INA FAG - GRAE60NPPB - Span Bearing

€75.64

(excl. VAT)

In stock - ready to ship

Ships within 67 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€75.64

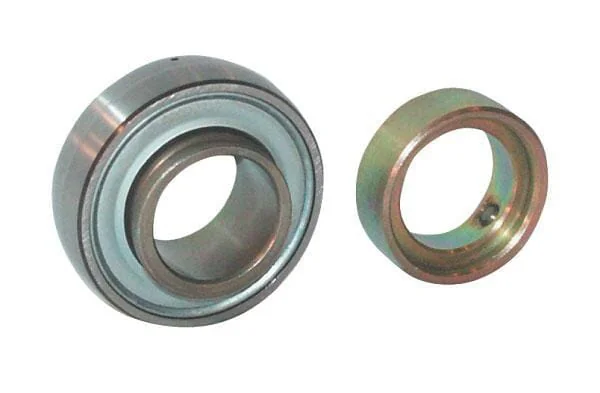

The INA-FAG GRAE60NPPB is a high-quality span bearing designed for demanding agricultural and industrial applications. This genuine FAG bearing features a spherical outer ring, allowing for angular misalignment, and an eccentric locking collar for secure shaft attachment. It is pre-lubricated and sealed to provide reliable performance and extended service life in harsh environments. Key dimensions include a bore diameter of 60 mm, an outer diameter of 110 mm, and a total width of 55.6 mm. This robust bearing ensures smooth operation and durability for various machinery.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
grae60nppb
OEM Part Numbers

John Deere

Massey Ferguson

Case Ih

New Holland

Valtra

Challenger

Kverneland

Unit
Each
Weight
1,4 kg
Includes
Clamp bearing Clamp ring
dInside diameter
60 mm
BOuter ring width
24 mm
CInner ring width
37,1 mm
DspOutside diameter
110 mm
SWWrench/Spanner size
5.0 mm
Basic radial load static
36000 N
Basic radial load dynamic
56000 N
EBall centre to end distance
13,5 mm
FOutside diameter of inner ring
72 mm
RLocking collar outside diameter
84 mm
GBall centre to grease hole distance
7,6 mm
B1Locking collar and inner ring width
53,1 mm
EAN
4012802800678
Manufacturer
INA/FAG
