INA FAG - GW20 - Shaft Support Block
INA FAG - GW20 - Shaft Support Block
INA FAG - GW20 - Shaft Support Block
INA FAG - GW20 - Shaft Support Block
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

INA FAG - GW20 - Shaft Support Block

INA FAG - GW20 - Shaft Support Block

€24.15

(Excl. VAT)

Price

(Excl. VAT)

€24.15

Product Description

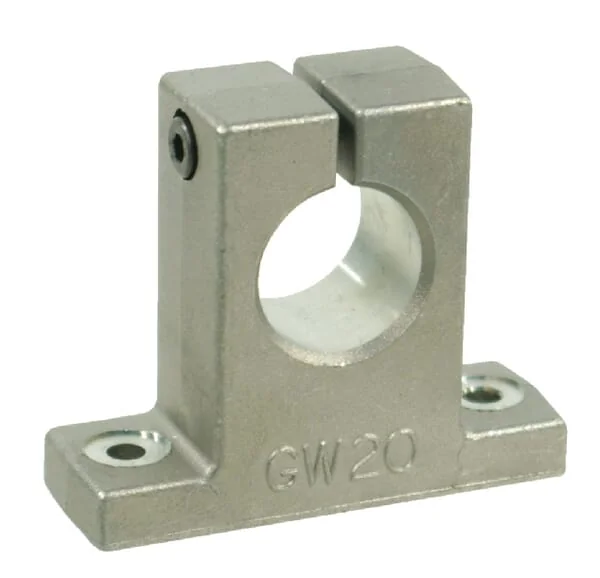

The INA GW20 shaft support block is a ready-to-fit unit designed for supporting shafts with a 20mm diameter, particularly in applications where large misalignments occur. This robust component comprises a spherical plain bearing (GE20-FW), a durable housing, and an integrated shaft support, ensuring reliable performance and straightforward installation.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Product Details

Brand
INA/FAG
Part Numbers
gw20
Unit
Each
LWidth
20 mm
Weight
0,15 kg
Material
Zinc die-cast
BTotal length
60 mm
HTotal height
50 mm
Technical info
Material: Zinc injection moulding
DInside diameter
20 mm
Flange thickness
7,5 mm
Application range
Axle support, to be positioned at the outer ends Suitable for both hollow and solid axles
Length top surface
32 mm
Wrench/Spanner size
3.0 mm
Diameter mounting hole
4,5 mm
Mounting holes distance
45 mm
Surface diameter for bolt head
10 mm
Bottom to center shaft hole distance
30 mm
EAN
4012802041965
Manufacturer
INA/FAG
