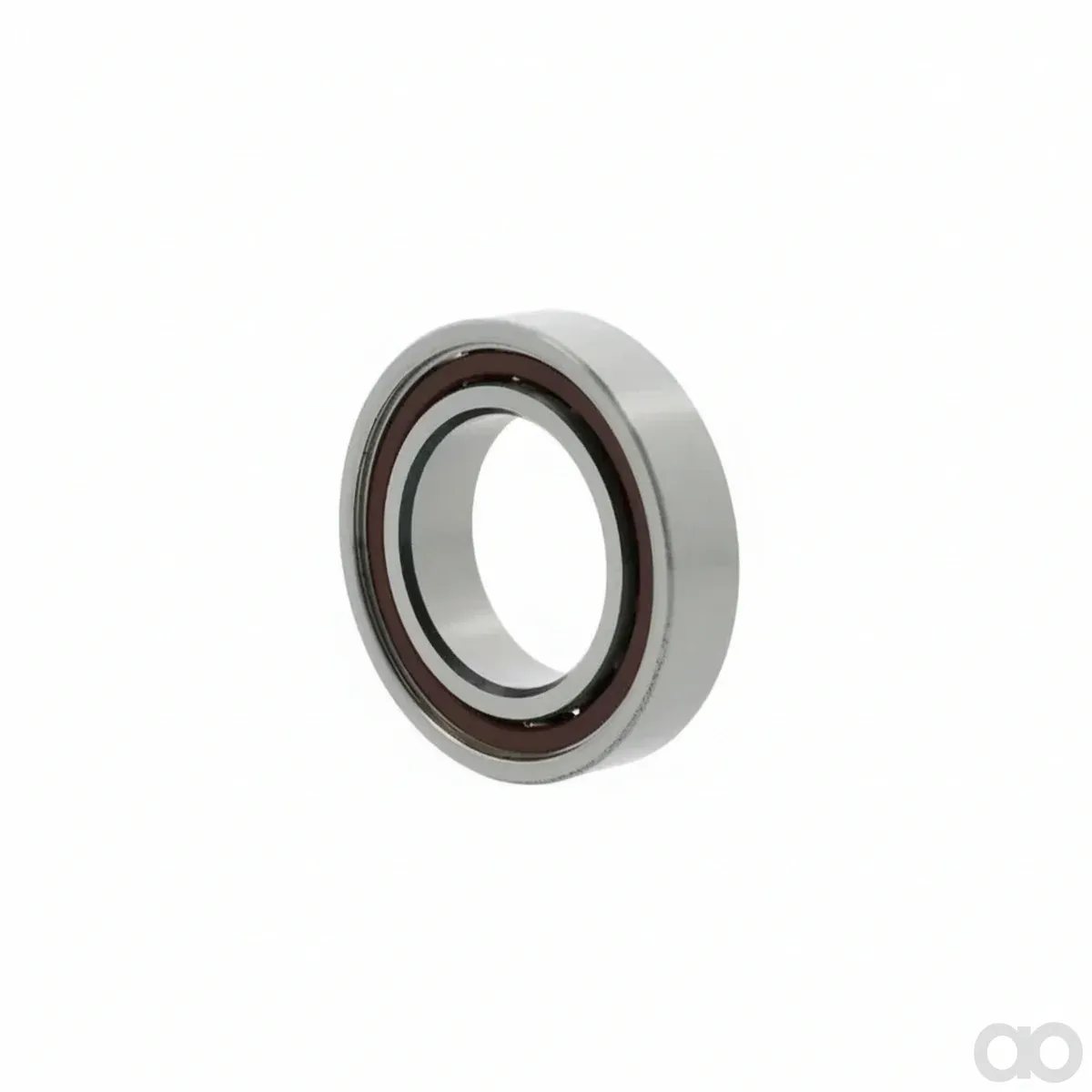

INA FAG - HS7017ETP4SUL - High Speed Spindle Bearing
INA FAG - HS7017ETP4SUL - High Speed Spindle Bearing

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

INA FAG - HS7017ETP4SUL - High Speed Spindle Bearing

INA FAG - HS7017ETP4SUL - High Speed Spindle Bearing

€398.69

(Excl. VAT)

Price

(Excl. VAT)

€398.69

Product Description

The FAG HS7017-E-T-P4S-UL is a high-precision angular contact ball bearing designed for demanding high-speed spindle applications. Featuring an 85 mm bore, 130 mm outer diameter, and 22 mm width, it has a 25° contact angle (E) and a robust textile laminate cage (T). This bearing is manufactured to P4S precision class and has a universal design (UL) for paired mounting with a light preload, ensuring optimal performance and rigidity in machine tool spindles and other precision machinery. Verified specifications from Schaeffler's official product data.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand
ina-fag
Bore Diameter (mm)
85
Outer Diameter (mm)
130
Width (mm)
22
Weight (kg)
0.9
Bearing Type
angular contact ball bearing
Contact Angle (°)
25
Cage Material
textile laminate
Precision Class
P4S
Preload Type
light preload, universal design for paired mounting
Dynamic Load Rating (kN)
40
Static Load Rating (kN)
27.5
Limiting Speed Grease (rpm)
18000
Limiting Speed Oil Air (rpm)
27000
Quality
OEM Supplier
Manufacturer
ina-fag
