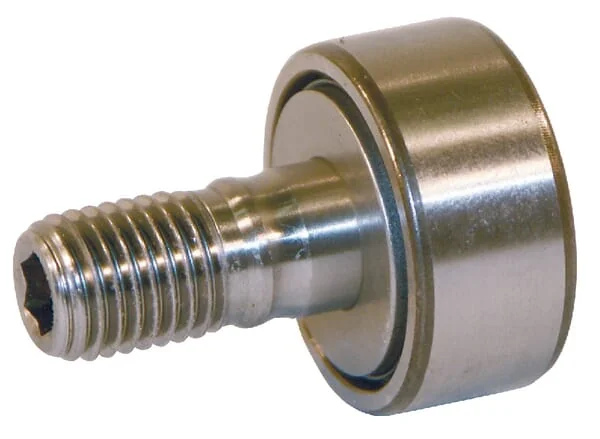

INA FAG - KR32B - INA Stud Type Track Roller
INA FAG - KR32B - INA Stud Type Track Roller
INA FAG - KR32B - INA Stud Type Track Roller
INA FAG - KR32B - INA Stud Type Track Roller
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

INA FAG - KR32B - INA Stud Type Track Roller

INA FAG - KR32B - INA Stud Type Track Roller

€49.35

(Excl. VAT)

Price

(Excl. VAT)

€49.35

Product Description

The INA KR32-B is a high-quality stud type track roller, designed for reliable performance in various industrial applications such as cam drives, conveyor systems, and linear guidance. This genuine INA component features a 32mm outer diameter and a 12mm stud diameter with an M12x1.5 thread for secure mounting. It is a full complement cylindrical roller set, providing high load carrying capacity, and is sealed on both sides to protect against contaminants and retain lubrication, ensuring extended service life and reduced maintenance.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
CWidth
14 mm
Benefits
Can absorb high radial loads No forces on edges with uneven standing
Properties
Solid shaft with guide bore With axial guidance via driving discs NMT add-on: equipped with a nut
BTotal length
40 mm
Inside diameter
12 mm
d1Shaft diameter
12 mm
Application range
Packaging machines Transport systems Roll-up doors Roller tensioners
DOutside diameter
32 mm
Bearing model type
Track rollers
Max working temperature
140 °C
Min working temperature
-30 °C
Basic radial load static
9300 N
Basic radial load dynamic
7100 N
Manufacturer
INA/FAG
