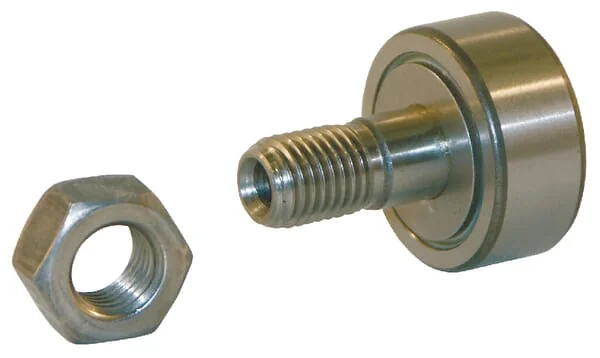

INA FAG - KRV52PPA - Stud Type Track Roller
INA FAG - KRV52PPA - Stud Type Track Roller
INA FAG - KRV52PPA - Stud Type Track Roller
INA FAG - KRV52PPA - Stud Type Track Roller
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

INA FAG - KRV52PPA - Stud Type Track Roller

INA FAG - KRV52PPA - Stud Type Track Roller

€91.42

(Excl. VAT)

Price

(Excl. VAT)

€91.42

Product Description

The INA KRV52-PP-A is a high-quality stud type track roller designed for efficient guidance and support in various cam and track applications. Featuring an outer diameter of 52 mm, a stud diameter of 20 mm, and an M20x1.5 thread, this roller ensures robust performance. It is equipped with PP lip seals on both sides for enhanced protection against contaminants and is pre-lubricated for maintenance-free operation. Manufactured from durable rolling bearing steel, it offers a dynamic load rating of 15.6 kN and a static load rating of 20 kN, making it suitable for demanding industrial environments.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
CWidth
24 mm
Weight
0,448 kg
Sealing
2RS
Properties
Thick-walled outer ring with profiled lateral surface Solid inner part with journal Fitted with thread Driving disc Single or two-row sets of cylinder rollers or needles
Regreasable
Yes
Rows number
1
BTotal length
66 mm
B1Shaft length
40,5 mm
Technical info
Outer ring of lateral surface is annular (R500) Temperature range: -30°C to +140°C Cage is full complement With axial guidance via driving disc
Inside diameter
20 mm
Outer ring width
24 mm
d1Shaft diameter
20 mm
Application range
Packaging machines Transport systems Roll-up doors Roller tensioners
DOutside diameter
52 mm
Bearing model type
Track rollers
Mounting thread pitch
1.50 mm
Max working temperature
100 °C
Min working temperature
-30 °C
Basic radial load static
48500 N
G1Mounting thread length
21 mm
Basic radial load dynamic
22200 N
GMounting thread diameter
M20
Manufacturer
INA/FAG
