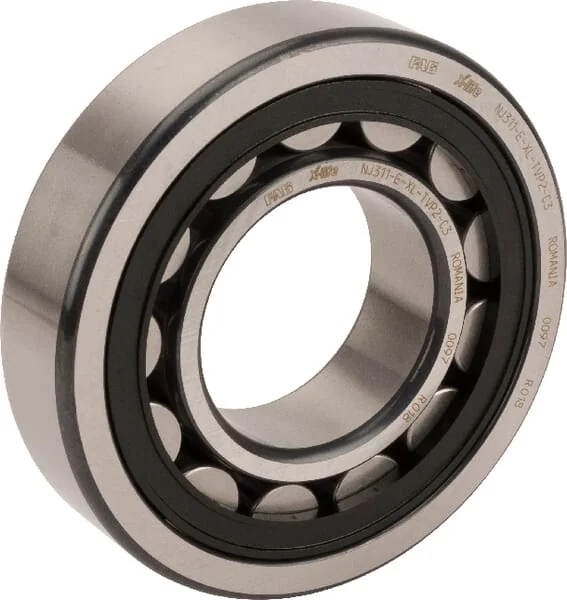

INA FAG - NJ311EXLTVP2C3 - Cylindrical Roller Bearing
INA FAG - NJ311EXLTVP2C3 - Cylindrical Roller Bearing
INA FAG - NJ311EXLTVP2C3 - Cylindrical Roller Bearing
INA FAG - NJ311EXLTVP2C3 - Cylindrical Roller Bearing
INA FAG - NJ311EXLTVP2C3 - Cylindrical Roller Bearing

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

INA FAG - NJ311EXLTVP2C3 - Cylindrical Roller Bearing

INA FAG - NJ311EXLTVP2C3 - Cylindrical Roller Bearing

€105.64

(Excl. VAT)

Price

(Excl. VAT)

€105.64

Product Description

The INA-FAG NJ311-E-XL-TVP2-C3 is a high-quality single row cylindrical roller bearing designed for heavy radial loads. It features a solid polyamide cage (TVP2) and an increased radial internal clearance (C3), making it suitable for applications with higher operating temperatures or where shaft expansion is expected. The 'E' designation indicates an optimized internal design for increased load carrying capacity, and 'XL' denotes an X-Life quality bearing, ensuring extended service life and reliability. This bearing has an inner diameter of 55 mm, an outer diameter of 120 mm, and a width of 29 mm.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
BWidth
29 mm
Weight
0,148 kg
Benefits
Correct operating play at high temperature or press fit
Properties
Outer ring with 2 fixed ribs Inner ring with 1 rib Shaft can be closed axially in 1 direction
Consists of
Cylindrical bearing Inner ring NJ
dInside diameter
55 mm
Application range
High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
DOutside diameter
120 mm
Bearing model type
Cylindrical roller bearings
Max rotation speed
8000 r/min
Ref rotation speed
5500 r/min
Basic radial load static
139000 N
Basic radial load dynamic
159000 N
Manufacturer
INA/FAG
