INA FAG - NU309ETVP2 - Roller Bearing NU309/NJ309
INA FAG - NU309ETVP2 - Roller Bearing NU309/NJ309
INA FAG - NU309ETVP2 - Roller Bearing NU309/NJ309
INA FAG - NU309ETVP2 - Roller Bearing NU309/NJ309

In stock - ready to ship

Order now for delivery between 11 May and 14 May
Free shipping

Pay Securely with

INA FAG - NU309ETVP2 - Roller Bearing NU309/NJ309

INA FAG - NU309ETVP2 - Roller Bearing NU309/NJ309

€76.04

(Excl. VAT)

Price

(Excl. VAT)

€76.04

Product Description

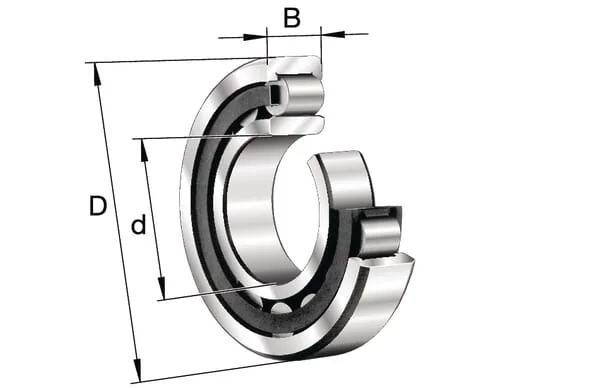

The FAG NU309ETVP2 is a genuine single row cylindrical roller bearing, manufactured by FAG (Schaeffler). This high-quality bearing features a 45mm bore diameter, a 100mm outer diameter, and a 25mm width. It is designed with a removable outer ring and a robust polyamide cage (ETVP2 designation), ensuring reliable performance and durability in various industrial applications. Its precision engineering provides efficient operation.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
BWidth
25 mm
Weight
0,088 kg
Sealing
Open
Properties
Outer ring with 2 fixed ribs Inner ring without rib Axial displacement of shaft with regard to housing in 2 directions
Consists of
Cylindrical bearing Inner ring NU
dInside diameter
45 mm
Application range
High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
DOutside diameter
100 mm
Bearing model type
Cylindrical roller bearings
Max rotation speed
9800 r/min
Ref rotation speed
6700 r/min
Basic radial load static
99000 N
Basic radial load dynamic
116000 N
Manufacturer
INA/FAG
