INA FAG - NUKR47A - Stud Type Track Roller
INA FAG - NUKR47A - Stud Type Track Roller
INA FAG - NUKR47A - Stud Type Track Roller
INA FAG - NUKR47A - Stud Type Track Roller
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

INA FAG - NUKR47A - Stud Type Track Roller

INA FAG - NUKR47A - Stud Type Track Roller

€101.34

(Excl. VAT)

Price

(Excl. VAT)

€101.34

Product Description

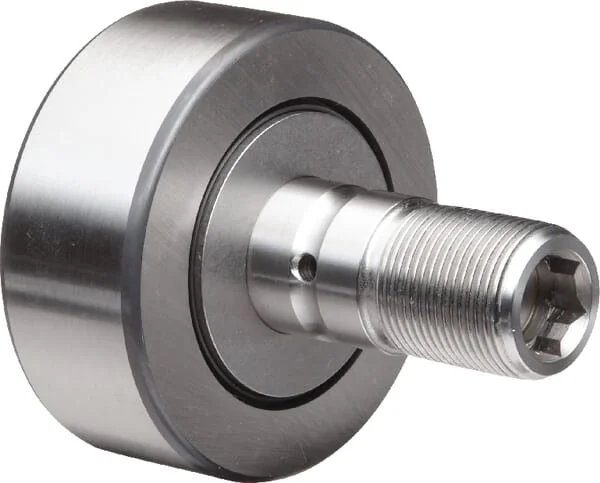

The INA-FAG NUKR47-A is a high-quality stud type track roller designed for demanding applications. It features a 47mm outer diameter and a 17mm stud diameter with an M16x1.5 thread, ensuring reliable performance in various cam and track follower systems. This roller incorporates a full complement cylindrical roller set, providing high load carrying capacity, and is sealed on both sides with lip seals for robust protection against contaminants. An eccentric collar allows for precise adjustment and alignment, making it a versatile component for industrial machinery.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
nukr47a
Unit
Each
CWidth
24 mm
Weight
0,378 kg
Sealing
ZZ
Benefits
Reduces friction and lubricant use Can absorb high radial loads No forces on edges with uneven standing
Properties
Solid shaft with guide bore With axial guidance via driving discs Roller bearing is fully rolling NMT add-on: equipped with a nut
Regreasable
Yes
Rows number
2
BTotal length
66 mm
B2Shaft length
40,5 mm
Inside diameter
20 mm
Outer ring width
24 mm
d1Shaft diameter
20 mm
Application range
Packaging machines Transport systems Roll-up doors Roller tensioners
DOutside diameter
47 mm
Bearing model type
Track rollers
Mounting thread pitch
1.50 mm
Max working temperature
140 °C
Min working temperature
-30 °C
Basic radial load static
38000 N
IGMounting thread length
21 mm
Basic radial load dynamic
28500 N
GMounting thread diameter
M20
EAN
4047643189590
Manufacturer
INA/FAG
