INA FAG - NUP2207ETVP2 - Cylinder Bearing Type Nup
INA FAG - NUP2207ETVP2 - Cylinder Bearing Type Nup
INA FAG - NUP2207ETVP2 - Cylinder Bearing Type Nup
INA FAG - NUP2207ETVP2 - Cylinder Bearing Type Nup

In stock - ready to ship

Ships within 120 hours
Free shipping

Pay Securely with

INA FAG - NUP2207ETVP2 - Cylinder Bearing Type Nup

INA FAG - NUP2207ETVP2 - Cylinder Bearing Type Nup

€60.87

(Excl. VAT)

Price

(Excl. VAT)

€60.87

Product Description

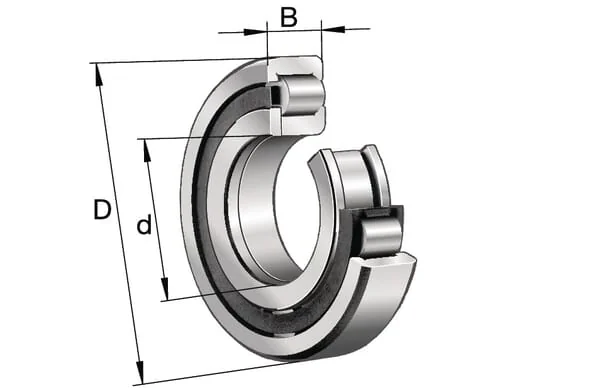

The INA-FAG NUP2207ETVP2 is a high-quality genuine cylindrical roller bearing designed for robust performance in various industrial applications. Featuring a 35mm bore diameter, 72mm outer diameter, and 23mm width, this bearing is equipped with an ET-type glass fibre reinforced polyamide cage (PA66) for durability, reduced friction, and lighter weight. The NUP design indicates a removable outer ring with two integral flanges on the inner ring, and one integral flange on the outer ring, along with a loose flange ring, allowing for axial displacement in one direction. Manufactured by FAG (part of the Schaeffler Group), it ensures reliable operation and high load capacity.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
nup2207etvp2
Unit
Each
BWidth
23 mm
Weight
0,385 kg
Sealing
Open
Properties
Outer ring with 2 fixed ribs Inner ring with 1 fixed and 1 loose rib Fixed bearing, to lock shaft axially in 2 directions
Consists of
Cylindrical bearing Inner ring NUP
dInside diameter
35 mm
Application range
High radial loads and high speeds Gearbox Gearbox Worm gear shaft Spring plates
DOutside diameter
72 mm
Bearing model type
Cylindrical roller bearings
Max rotation speed
12300 r/min
Ref rotation speed
10000 r/min
Basic radial load static
65000 N
Basic radial load dynamic
73000 N
EAN
4012801021739
Manufacturer
INA/FAG
