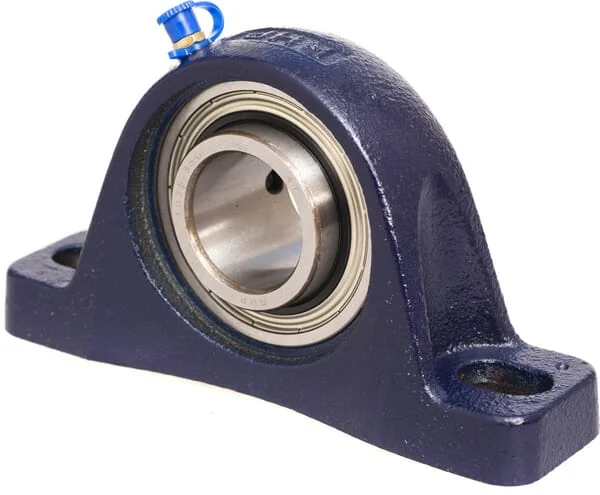

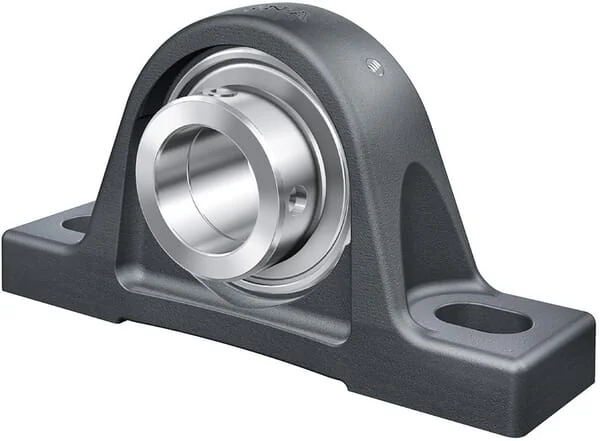

INA FAG - PASEY50N - Pillow Block Standing PASEY

OEM Supplier

SKU: ina-fag-pasey50n

INA FAG - PASEY50N - Pillow Block Standing PASEY

€66.54

(excl. VAT)

In stock - ready to ship

Ships within 82 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€66.54

The INA-FAG PASEY50N is a high-quality pillow block standing bearing unit designed for reliable performance in various industrial and agricultural machinery. This unit features a robust cast iron FAG SY 50 N housing and a FAG YAR 210-2F insert bearing with a 50mm bore diameter. It offers excellent load carrying capabilities with a dynamic load rating of 35.1 kN and a static load rating of 23.2 kN. The PASEY50N is suitable for applications requiring easy mounting and maintenance, providing efficient operation and extended service life.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
pasey50n
Aftermarket Part Numbers
Unit
Each
Weight
2,47 kg
Properties
• Inner bearing has one-sided extended inner ring with 2 adjusting screws Can be subsequently lubricated
Total width
54 mm
Housing type
Pillow block
HTotal height
115 mm
WTotal length
200 mm
BHousing width
54 mm
CFlange thickness
11 mm
Mounting holes distance
158 mm
AShaft vertical distance
57,2 mm
KMounting holes diameter
16,6 mm
dBearing inside diameter
50 mm
LBearing inner ring width
43 mm
Grease nipple thread diameter
M6
OBearing balls distance to mounting surface
32 mm
EAN
4054372845178
Manufacturer
INA/FAG
