INA FAG - PCF40 - Bearing PCF Square UCF 208

OEM Supplier

SKU: ina-fag-pcf40

INA FAG - PCF40 - Bearing PCF Square UCF 208

€54.96

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€54.96

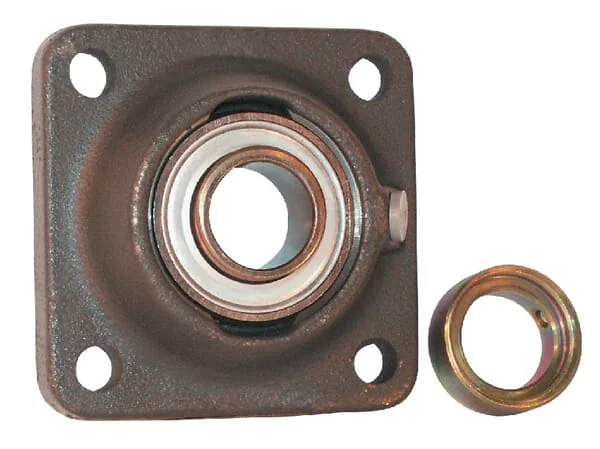

The INA-FAG PCF40 is a high-quality square flange pillow block bearing, designed for robust performance in various agricultural and industrial applications. This unit features a cast iron housing (P208) and a UC208 insert bearing with a 40mm bore diameter. It provides reliable support and easy mounting for shafts, ensuring smooth operation and durability.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
pcf40
Unit
Each
Weight
1,77 kg
Benefits
Low space requirement
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Housing type
Square flange
ATotal length
130 mm
Housing width
130 mm
UTotal height
51 mm
THousing height
28,8 mm
Mounting holes distance
101,5 mm
Basic radial load static
19800 N
KMounting holes diameter
14 mm
dBearing inside diameter
40 mm
Basic radial load dynamic
32500 N
LBearing inner ring width
43,7 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
58 mm
PBearing balls distance to mounting surface
18,3 mm
EAN
4012802790818
Manufacturer
INA/FAG
