INA FAG - PCFT20 - Housing Unit Pcft
OEM Supplier
SKU: ina-fag-pcft20



€30.26
(excl. VAT)Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60
Pay Securely with

INA FAG - PCFT20 - Housing Unit Pcft
€30.26
(Excl. VAT)
Price
(Excl. VAT)
€30.26

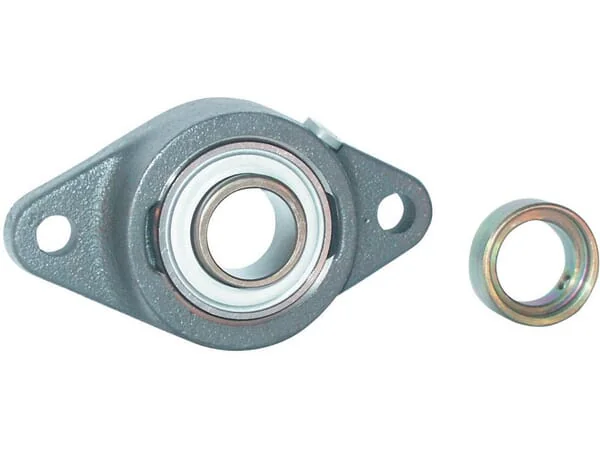

This oval flange bearing block with integrated radial insert bearing is pre-assembled and ready to use. The radial bearing with eccentric locking collar and housing are matched. The flange housing consists of one piece and is resistant to radial and axial loads.
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components.
The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments.
At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao.
INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.
Product Details
Brand
Pros
Small installation space self-aligning
Unit
Each
Benefits
Low space requirement
Includes
Bearing block Tightening washer
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
ATotal width
34 mm
Housing type
Oval flange
Total length
112 mm
Housing width
61 mm
UTotal height
34 mm
THousing height
17,5 mm
Basic radial load static
6600 N
KMounting holes diameter
11,5 mm
MMounting holes distance
90 mm
dBearing inside diameter
20 mm
Basic radial load dynamic
13600 N
L*Bearing inner ring width
31 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
33 mm
PBearing balls distance to mounting surface
10,5 mm
EAN
4012802791693
Manufacturer
INA/FAG
