INA FAG - PCFTR50 - INA Flanged Bearing Unit
OEM Supplier
SKU: ina-fag-pcftr50





€110.85€94.74 (Excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Shipping fee: €9.99 incl. VAT
Pay Securely with

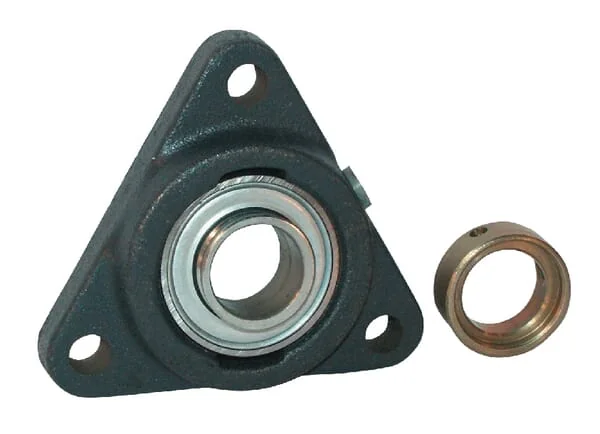

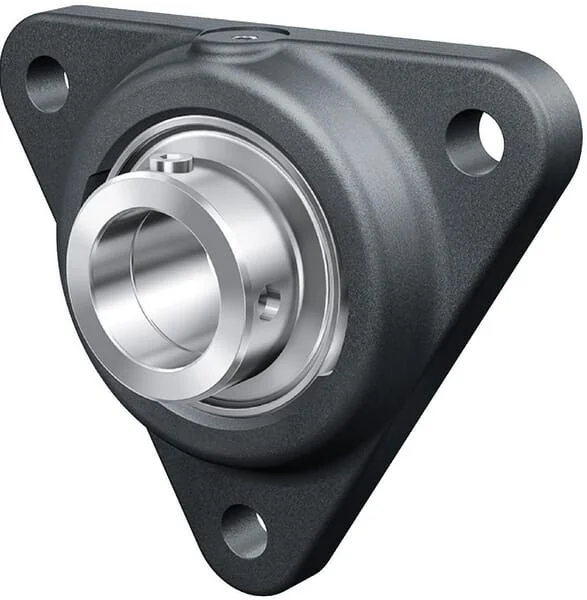

INA FAG - PCFTR50 - INA Flanged Bearing Unit
€110.85
Price
€110.85
Product Details
Brand
Part Numbers
pcftr50
Unit
Each
Weight
2,03 kg
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Housing type
Triangular flange

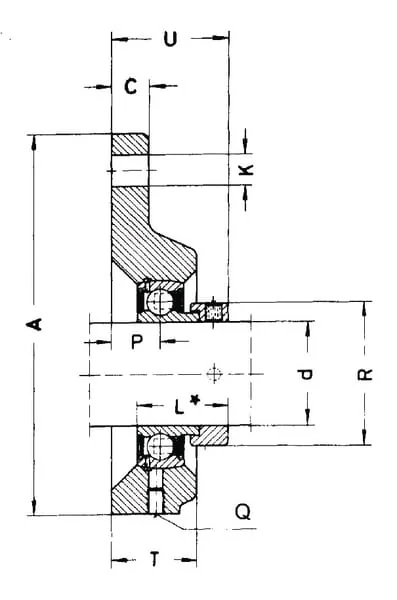

Total length
150 mm
UTotal height
51,9 mm
AHousing width
150 mm
THousing height
33 mm
BShaft vertical distance
55 mm
Basic radial load static
23200 N
KMounting holes diameter
14 mm
dBearing inside diameter
50 mm
Basic radial load dynamic
35000 N
L*Bearing inner ring width
43,7 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
69 mm
PBearing balls distance to mounting surface
19,2 mm
EAN
4012802790931
Manufacturer
INA/FAG
The INA-FAG PCFTR50 is a robust flanged bearing unit designed for reliable performance in various industrial applications. It features a 50mm bore diameter, a durable cast iron housing, and a relubrication facility to ensure extended service life and reduced maintenance. This unit is equipped with an insert bearing that has a spherical outer ring, allowing for initial misalignment compensation. Ideal for conveyor systems, agricultural machinery, and general industrial equipment requiring a sturdy, self-aligning bearing solution.
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components.
The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments.
At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,981 genuine INA FAG spare parts are available at Partao.
INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.
