INA FAG - PCJ20TVFA1255 - Flanged Bearing Unit

OEM Supplier

SKU: ina-fag-pcj20tvfa1255

INA FAG - PCJ20TVFA1255 - Flanged Bearing Unit

€49.00

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€49.00

The INA PCJ20-TV-FA125.5 is a high-quality flanged bearing unit designed for various industrial applications. It features a robust cast iron housing (PCJ20-TV) and an INA GRAE20-NPP-B insert bearing. This unit is engineered for a 20 mm shaft diameter and includes RSR contact seals on both sides for enhanced protection against contaminants. With an overall height of 125.5 mm, a dynamic load rating of 14.8 kN, and a static load rating of 7.8 kN, it offers reliable performance and easy mounting in demanding environments.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
pcj20tvfa1255
Unit
Each
Weight
0,33 kg
Properties
Plastic bearing housing Inner bearing in rust-repellent Corrotect design Inner bearing has one-sided extended inner ring with clamp ring Subsequent lubrication possible
Consists of
Bearing block Clamp ring End cap
Housing type
Square flange
Total length
86 mm
Housing width
87 mm

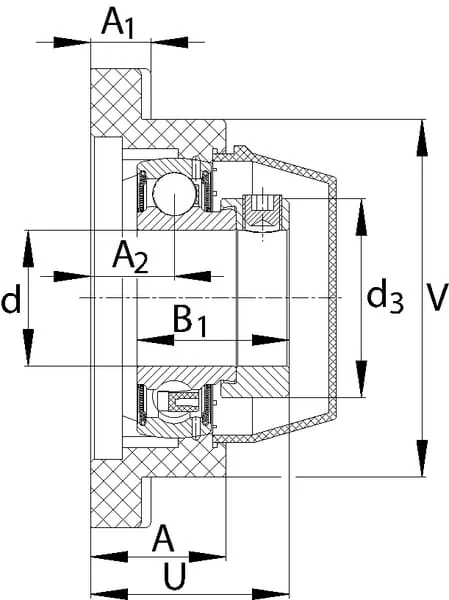

UTotal height
41,5 mm
AHousing height
28 mm
Application range
Mobile mechanical engineering Stationary mechanical engineering Corrosive environments
A1Flange thickness
35 mm
Mounting holes diameter
11 mm
Mounting holes distance
63,5 mm
Basic radial load static
6600 N
dBearing inside diameter
20 mm
Basic radial load dynamic
13600 N
B1Bearing inner ring width
31 mm
Grease nipple thread diameter
M28
A2Bearing balls distance to mounting surface
18 mm
EAN
4012802831351
Manufacturer
INA/FAG
