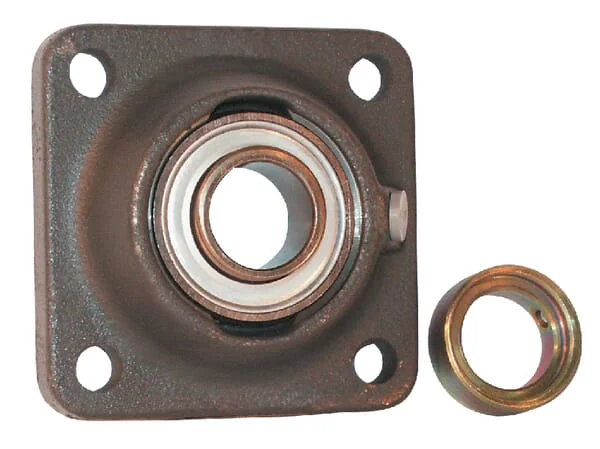

INA FAG - PCJ35 - Bearing Block

OEM Supplier

SKU: ina-fag-pcj35

INA FAG - PCJ35 - Bearing Block

€44.25

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€44.25

The INA-FAG PCJ35 is a robust cast iron plummer block housing, engineered for reliable performance in various industrial and agricultural machinery applications. This genuine FAG housing is designed to accommodate bearings for a 35mm shaft, providing secure mounting and protection for rotating components. Its durable construction ensures longevity and stability, making it an essential component for power transmission systems.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
pcj35
Unit
Each
Weight
1,46 kg
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Housing type
Square flange
Total length
118 mm
Housing width
118 mm
UTotal height
50,5 mm
THousing height
30,5 mm
CFlange thickness
17 mm
Mounting holes diameter
14 mm
Basic radial load static
15300 N
MMounting holes distance
92 mm
dBearing inside diameter
35 mm
Basic radial load dynamic
27500 N
LBearing inner ring width
38,9 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
51 mm
Bearing balls distance to locking side end
21 mm
EAN
4012802809411
Manufacturer
INA/FAG
