INA FAG - PCJ40 - Housing Unit PCJ

OEM Supplier

SKU: ina-fag-pcj40

INA FAG - PCJ40 - Housing Unit PCJ

€50.47

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€50.47

INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
pcj40
Unit
Each
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring

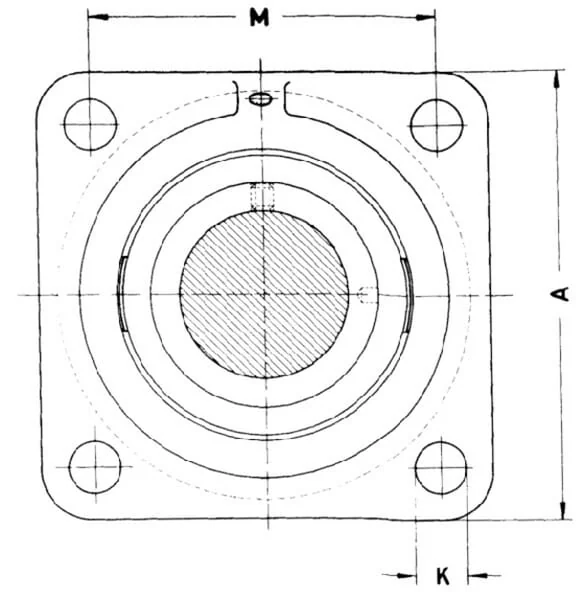

Housing type
Square flange
Total length
130 mm
Housing width
130 mm
UTotal height
56,8 mm
THousing height
34,5 mm
CFlange thickness
19 mm
Mounting holes diameter
14 mm
Basic radial load static
19800 N
MMounting holes distance
101,5 mm
dBearing inside diameter
40 mm
Basic radial load dynamic
34500 N
LBearing inner ring width
43,7 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
58 mm
Bearing balls distance to locking side end
24 mm
EAN
4012802809398
Manufacturer
INA/FAG
