INA FAG - PCJT20 - Bearing Block Oval PCJT
INA FAG - PCJT20 - Bearing Block Oval PCJT
INA FAG - PCJT20 - Bearing Block Oval PCJT
INA FAG - PCJT20 - Bearing Block Oval PCJT
INA FAG - PCJT20 - Bearing Block Oval PCJT

In stock - ready to ship

Order now for delivery between 11 May and 14 May
Free shipping on orders over €60

Pay Securely with

INA FAG - PCJT20 - Bearing Block Oval PCJT

INA FAG - PCJT20 - Bearing Block Oval PCJT

€26.92

(Excl. VAT)

Price

(Excl. VAT)

€26.92

Product Description

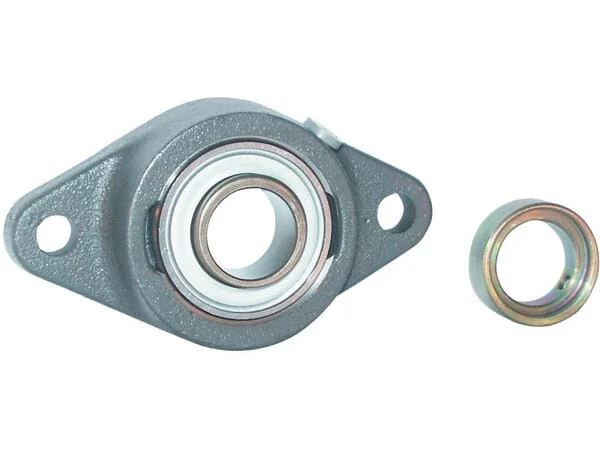

The INA-FAG PCJT20 is a high-quality oval flange bearing unit, also known as a plummer block or pillow block bearing. This unit features a cast iron housing and an insert bearing, providing excellent durability and performance in various industrial and agricultural machinery applications. It is designed for easy mounting and reliable operation, ensuring efficient power transmission and shaft support. The PCJT20 is a genuine FAG component, known for its precision engineering and long service life.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
Weight
0,44 kg
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Housing type
Oval flange
Total length
61 mm
UTotal height
42,5 mm
UHousing width
112 mm
THousing height
28 mm
Basic radial load static
6600 N
KMounting holes diameter
11,5 mm
MMounting holes distance
90 mm
dBearing inside diameter
20 mm
Basic radial load dynamic
13600 N
L*Bearing inner ring width
31 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
33 mm
Bearing balls distance to locking side end
19 mm
Manufacturer
INA/FAG
