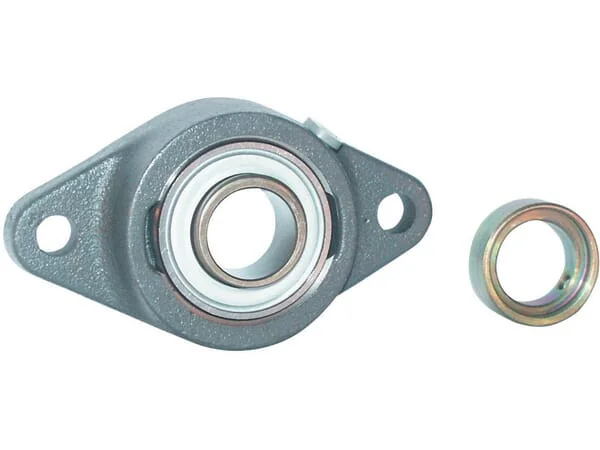

INA FAG - PCJT17 - INA Flanged Bearing Unit

OEM Supplier

SKU: ina-fag-pcjt17

INA FAG - PCJT17 - INA Flanged Bearing Unit

€29.51

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€29.51

The INA-FAG PCJT17 is a robust flanged bearing unit designed for various industrial applications. It features a 17mm bore diameter, a durable cast iron housing, and includes a relubrication facility for extended service life. This unit is part of the INA Flanged Bearing Unit series, known for its reliability and performance in demanding environments.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
pcjt17
Unit
Each
Weight
0,36 kg
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Housing type
Oval flange
Total length
57 mm
UTotal height
39,1 mm
UHousing width
99 mm
THousing height
25 mm
Basic radial load static
4750 N
KMounting holes diameter
11,5 mm
MMounting holes distance
76,5 mm
dBearing inside diameter
17 mm
Basic radial load dynamic
9800 N
L*Bearing inner ring width
28,6 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
28 mm
Bearing balls distance to locking side end
17 mm
EAN
4012802798036
Manufacturer
INA/FAG
