INA FAG - PCJ35XLNFA125 - Flanged Bearing Unit

OEM Supplier

SKU: ina-fag-pcj35xlnfa125

INA FAG - PCJ35XLNFA125 - Flanged Bearing Unit

€62.87

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€62.87

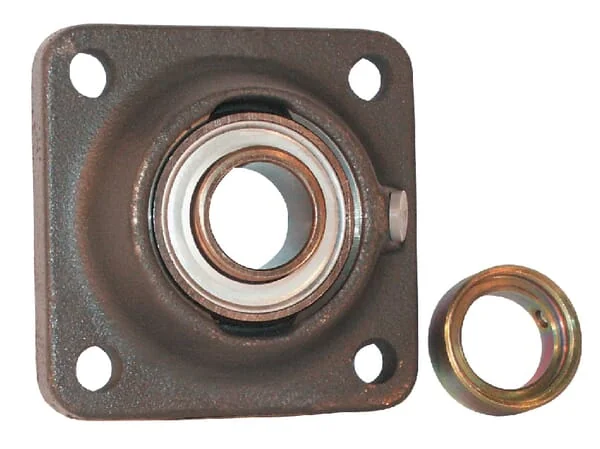

The INA PCJ35-XL-N-FA125 is a high-quality flanged bearing unit featuring a 35mm bore and a robust cast iron housing. Designed for reliable performance in various industrial machinery, this unit ensures efficient operation and durability. It integrates a ball bearing insert within a square flanged housing, providing stable mounting and support.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
pcj35xlnfa125
Unit
Each
Weight
1,46 kg
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Total width
50,5 mm
Housing type
Square flange
Total length
118 mm
Housing width
118 mm
UTotal height
50,5 mm
Outside diameter
118 mm
CFlange thickness
19 mm
Basic radial load static
15300 N
dBearing inside diameter
35 mm
Basic radial load dynamic
27500 N
Grease nipple thread diameter
M6
EAN
4012802810424
Manufacturer
INA/FAG
