INA FAG - PHE40 - Bearing Block PHE 40

OEM Supplier

SKU: ina-fag-phe40

INA FAG - PHE40 - Bearing Block PHE 40

€45.67

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€45.67

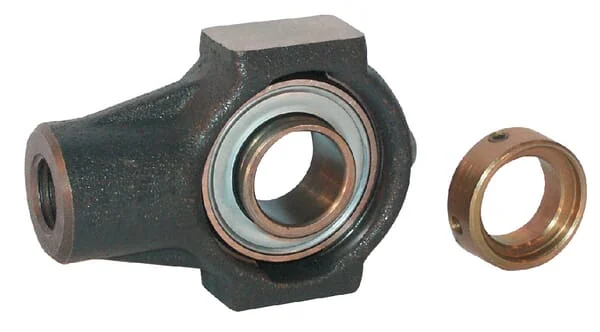

The INA-FAG PHE40 is a robust plummer block bearing housing, manufactured from durable grey cast iron, designed to accommodate bearings for a 40mm shaft diameter. This housing provides essential support and protection for self-aligning ball bearings or spherical roller bearings, typically used with adapter sleeves. With dimensions of 180mm length, 80mm width, and 110mm height, it ensures reliable performance and extended service life in various industrial and agricultural machinery applications.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
phe40
Unit
Each
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
ATotal length
135 mm
MHousing width
100 mm
Flange thickness
32 mm
WGuide groove length
45 mm
HShaft vertical distance
85 mm
K1Mounting thread length
24 mm
Mounting thread diameter
M24
dBearing inside diameter
40 mm
LBearing inner ring width
43,8 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
58 mm
OBearing balls distance to mounting surface
32,7 mm
EAN
4012802788327
Manufacturer
INA/FAG
