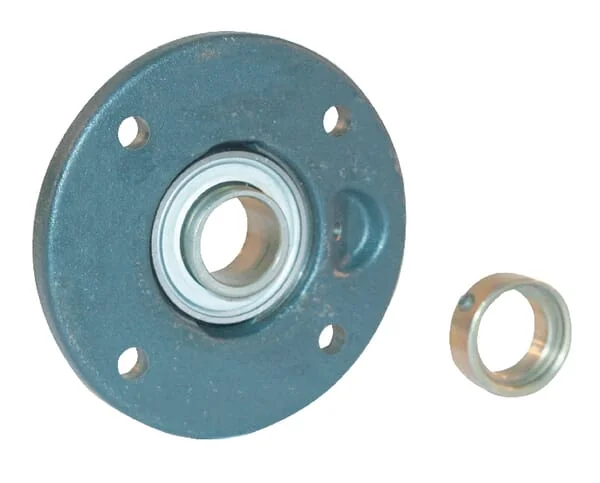

INA FAG - PME55 - Housing Unit PME

OEM Supplier

SKU: ina-fag-pme55

INA FAG - PME55 - Housing Unit PME

€99.64

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€99.64

INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
pme55
Unit
Each
Weight
3,24 kg
Benefits
Precise axis alignment possible Fixing points are relieved
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Total width
48,4 mm
Housing type
Round flange
Total height
36,4 mm
Housing width
185 mm
Housing height
27,5 mm
Bearing material
Steel
CFlange thickness
19 mm
Fitting edge diameter
125 mm
Basic radial load static
29000 N
KMounting holes diameter
18 mm
dBearing inside diameter
55 mm
Basic radial load dynamic
46000 N
L*Bearing inner ring width
48,4 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
76 mm
EAN
4012802817423
Manufacturer
INA/FAG
