INA FAG - PSHEY50N - INA Pillow Block

OEM Supplier

SKU: ina-fag-pshey50n

INA FAG - PSHEY50N - INA Pillow Block

€76.21

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€76.21

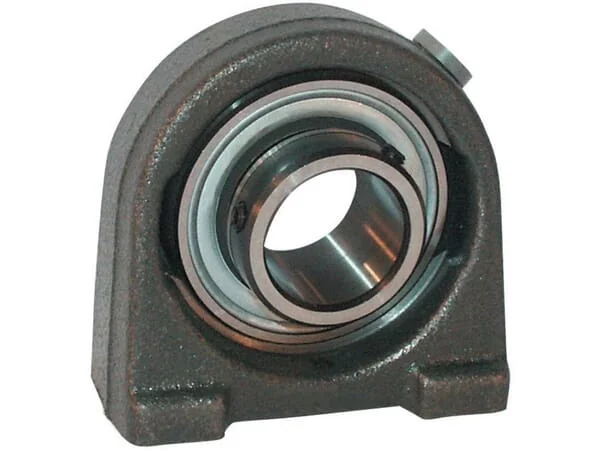

The INA-FAG PSHEY50-N is a high-quality pillow block bearing unit designed for industrial applications. It features a robust cast iron housing and a 50mm bore, secured by a reliable grub screw locking mechanism. This unit is equipped with a GRAE50-NPP-B insert bearing, offering a dynamic load rating of 30.7 kN and a static load rating of 19.6 kN, suitable for demanding operational environments. With an overall length of 190mm, width of 60mm, and height of 108mm, it provides stable and efficient performance.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
pshey50n
Unit
Each
Weight
2,17 kg
Benefits
Low space requirement
Properties
• Inner bearing has one-sided extended inner ring with 2 adjusting screws Can be subsequently lubricated
Total width
54 mm
Housing type
Pillow block - short
Total length
135 mm
HTotal height
115 mm
BHousing width
54 mm
Mounting holes distance
101,6 mm
Mounting thread diameter
M16
dBearing inside diameter
50 mm
Grease nipple thread diameter
M6
OBearing balls distance to mounting surface
32 mm
EAN
4012802802535
Manufacturer
INA/FAG
