INA FAG - RA20 - Bearing Assembly

OEM Supplier

SKU: ina-fag-ra20

INA FAG - RA20 - Bearing Assembly

€25.12

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€25.12

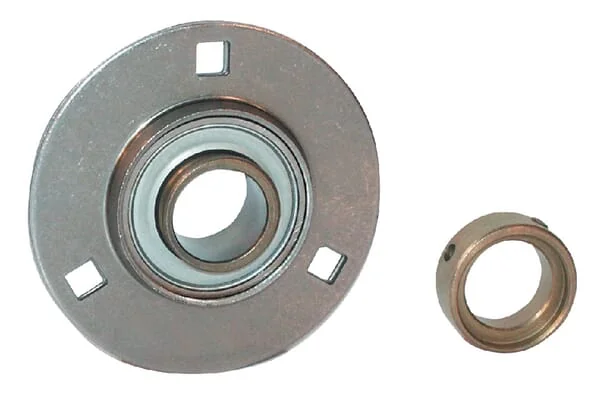

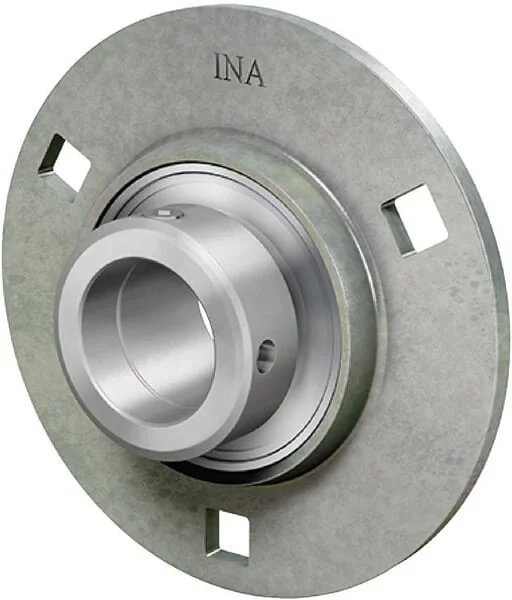

The INA-FAG RA20 bearing assembly is a high-quality component engineered for durability and smooth operation. This genuine INA-FAG part ensures precise fitment and long-lasting performance in demanding environments. Ideal for replacements and new installations requiring robust bearing solutions.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
ra20
Unit
Each
Weight
0,32 kg
Properties
Housing components rust-resistant through Corrotect N coating Inner bearing has one-sided extended inner ring with clamp ring No subsequent lubrication possible Up to and including bearing block RA35: 3 attachment openings RA40 and above: 4 attachment openings
Consists of
2 halves of housing Clamp bearing Clamp ring
Total width
31 mm
Housing type
Round flange
Total height
25,5 mm
Housing width
90,5 mm
Housing height
8 mm
Bearing material
Steel
Flange thickness
2 mm
Housing material
Steel
Basic radial load static
6600 N
KMounting holes diameter
8,7 mm
dBearing inside diameter
20 mm
Basic radial load dynamic
12800 N
L*Bearing inner ring width
31 mm
Locking ring outside diameter
33 mm
Mounting holes/bolts circle diameter
71,5 mm
EAN
4012802792768
Manufacturer
INA/FAG
