INA FAG - RASE50 - Pillow Block Standing RASE

OEM Supplier

SKU: ina-fag-rase50

INA FAG - RASE50 - Pillow Block Standing RASE

€72.14

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€72.14

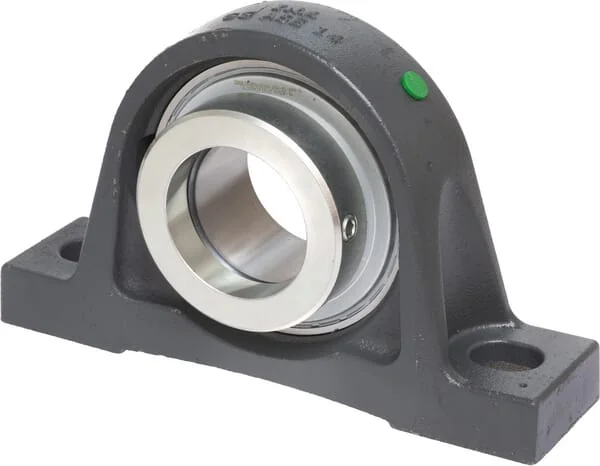

The INA-FAG RASE50 is a high-quality pillow block bearing unit, featuring a robust cast iron housing and an insert bearing with an eccentric locking collar for secure shaft attachment. Designed for reliability in demanding agricultural, construction, and industrial machinery, this unit provides excellent support and alignment. It is pre-lubricated and sealed, ensuring long-lasting performance and reduced maintenance. The RASE50 is engineered to accommodate shaft diameters of 50 mm, offering a durable and efficient solution for various rotating applications.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rase50
Unit
Each
Weight
2,8 kg
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
Bearing block Clamp ring
Housing type
Pillow block
HTotal height
115 mm
WTotal length
200 mm
BHousing width
54 mm
Technical info
Addition FA125: additional rust protection
CFlange thickness
18 mm
Mounting holes distance
158 mm
AShaft vertical distance
57,2 mm
KMounting holes diameter
16,6 mm
dBearing inside diameter
50 mm
LBearing inner ring width
62,7 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
69 mm
OBearing balls distance to mounting surface
38,1 mm
EAN
4054372845079
Manufacturer
INA/FAG
