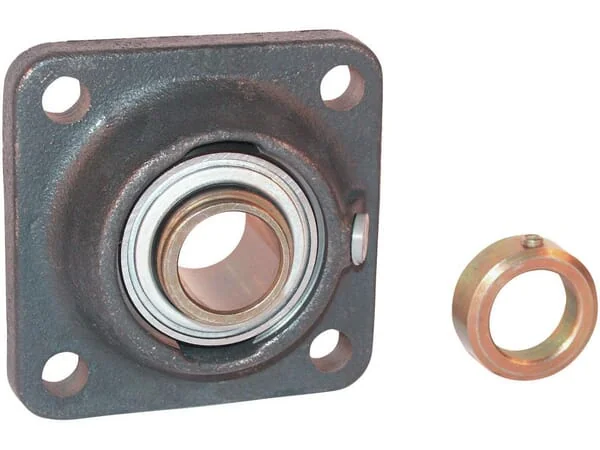

INA FAG - RCJ45 - Housing Unit Rcj

OEM Supplier

SKU: ina-fag-rcj45

INA FAG - RCJ45 - Housing Unit Rcj

€72.45

(excl. VAT)

In stock - ready to ship

Ships within 96 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€72.45

INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
rcj45
Unit
Each
Weight
2,38 kg
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Total width
59,1 mm
Housing type
Square flange
Total length
137 mm
Housing width
137 mm
UTotal height
58,9 mm
THousing height
35 mm
CFlange thickness
40 mm
Mounting holes diameter
14 mm
Basic radial load static
20400 N
MMounting holes distance
105 mm
dBearing inside diameter
45 mm
Basic radial load dynamic
34500 N
LBearing inner ring width
56,5 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
63 mm
Bearing balls distance to locking side end
24 mm
EAN
4054372939396
Manufacturer
INA/FAG
