INA FAG - RCJ80 - INA Flanged Bearing Unit

OEM Supplier

SKU: ina-fag-rcj80

INA FAG - RCJ80 - INA Flanged Bearing Unit

€306.35

(excl. VAT)

In stock - ready to ship

Ships within 83 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€306.35

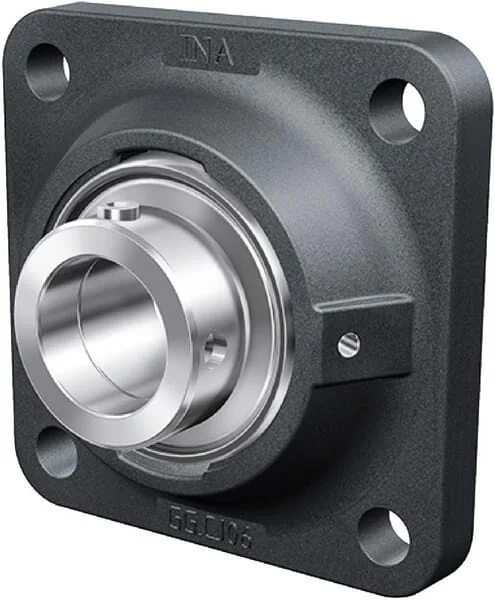

The INA RCJ80 is a high-quality flanged bearing unit featuring an 80mm bore diameter and a robust cast iron housing. This genuine INA unit includes a GRAE80-XL-NPP-B bearing insert and an RJ80 housing, designed for reliable performance in various industrial and agricultural machinery. Its square flange design with 190mm outer dimensions and 150mm mounting hole distance ensures secure installation. With an overall height of 60mm and a weight of 5.5kg, the RCJ80 provides durable and efficient rotational support.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rcj80
Aftermarket Part Numbers
Unit
Each
Weight
6,25 kg
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Total width
88,9 mm
Housing type
Square flange
Total length
197 mm
Housing width
197 mm
UTotal height
88,9 mm
THousing height
55,8 mm
CFlange thickness
17 mm
Mounting holes diameter
23 mm
Basic radial load static
54000 N
MMounting holes distance
153 mm
dBearing inside diameter
80 mm
Basic radial load dynamic
76000 N
LBearing inner ring width
70,7 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
108 mm
PBearing balls distance to mounting surface
41,3 mm
EAN
4054372849084
Manufacturer
INA/FAG
