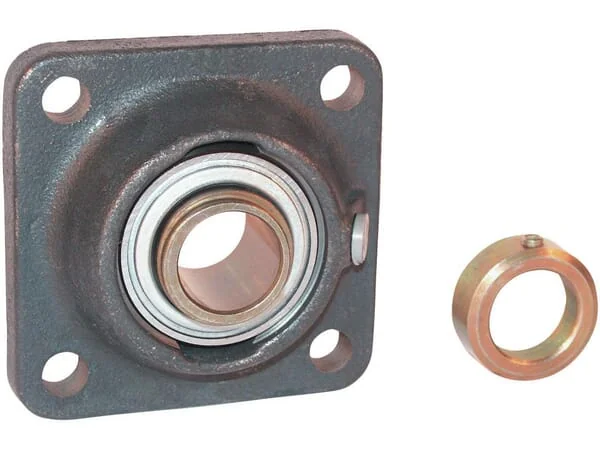

INA FAG - RCJ60 - Bearing Block Square RCJ

OEM Supplier

SKU: ina-fag-rcj60

INA FAG - RCJ60 - Bearing Block Square RCJ

€88.73

(excl. VAT)

In stock - ready to ship

Ships within 82 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€88.73

The INA-FAG RCJ60 is a genuine cast iron square flanged housing unit, designed for reliable performance in demanding industrial and agricultural environments. This complete bearing unit features a 60mm bore and includes an insert bearing, ensuring it is ready for immediate installation. Its durable cast iron construction provides excellent strength and longevity. Key technical specifications include an overall flange width of 140mm, an overall flange height of 140mm, and a housing width of 63.5mm. It is designed for M16 mounting bolts with a spacing of 111mm and a mounting hole diameter of 19mm.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rcj60
Unit
Each
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Housing type
Square flange
Total length
175 mm
Housing width
175 mm
THousing height
46 mm
CFlange thickness
25 mm
Mounting holes diameter
18 mm
MMounting holes distance
143 mm
dBearing inside diameter
60 mm
LBearing inner ring width
77,9 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
84 mm
Bearing balls distance to locking side end
34 mm
EAN
4054372845222
Manufacturer
INA/FAG
