INA FAG - RCJTY40N - Oval Bearing Block RCJTY

OEM Supplier

SKU: ina-fag-rcjty40n

INA FAG - RCJTY40N - Oval Bearing Block RCJTY

€48.06

(excl. VAT)

In stock - ready to ship

Ships within 88 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€48.06

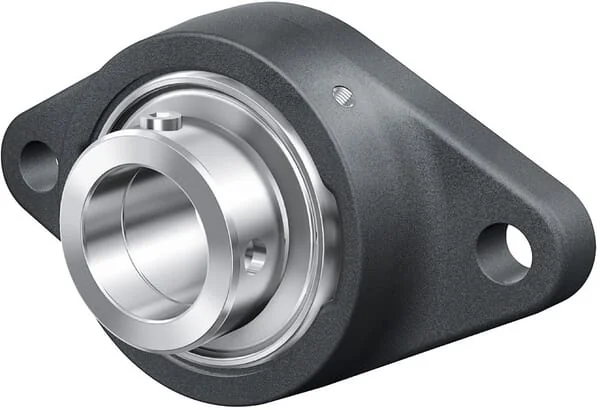

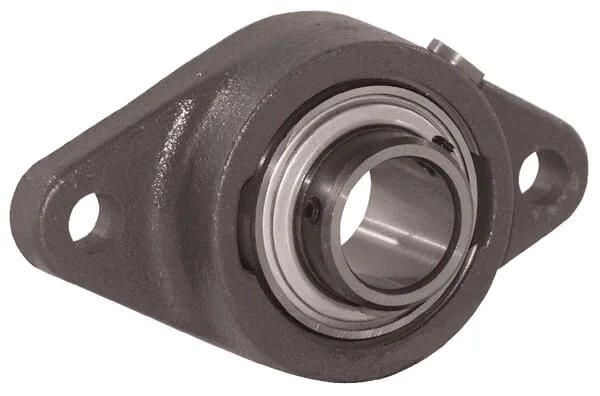

The INA-FAG RCJTY40N is a genuine oval flanged bearing unit, featuring a robust cast iron housing (designation JTY40) and designed for a 40mm shaft diameter. This unit provides reliable support and easy installation in various industrial applications. It typically includes an INA insert bearing, such as the GRAE40NPPB. Key dimensions include an overall housing length of 165mm, width of 140mm, and height of 100mm, with mounting hole distances of 110mm and a mounting hole diameter of 14mm. The unit weighs approximately 1.5 kg.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rcjty40n
Aftermarket Part Numbers
Unit
Each
Weight
1,57 kg
Properties
Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Total width
49,2 mm
Housing type
Oval flange
Total height
54,2 mm
BTotal length
105 mm
AHousing width
172 mm
THousing height
34,5 mm
Mounting holes distance
143,5 mm
Basic radial load static
19800 N
KMounting holes diameter
14 mm
dBearing inside diameter
40 mm
Basic radial load dynamic
34500 N
LBearing inner ring width
49,2 mm
Grease nipple thread diameter
M6
Bearing balls distance to locking side end
24 mm
EAN
4012802797022
Manufacturer
INA/FAG
