INA FAG - RCJTZ40 - Bearing with Housing

€77.74

(excl. VAT)

In stock - ready to ship

Ships within 87 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€77.74

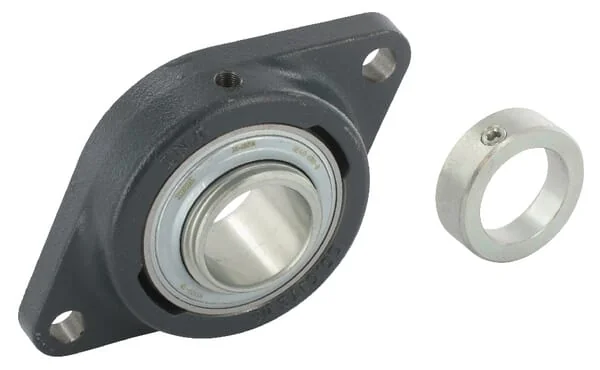

The INA-FAG RCJTZ40 is a high-quality bearing unit featuring a deep groove ball bearing integrated into a robust cast iron flanged housing. Designed for applications requiring reliable performance under high radial loads, this unit has a 40mm shaft diameter cylindrical bore and a spherical outer ring to compensate for static angular misalignment. It allows for relubrication, ensuring extended service life and optimal operation in demanding industrial and agricultural machinery.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rcjtz40
Unit
Each
Weight
1,72 kg
Housing type
Oval flange
Total height
55,1 mm
HTotal length
105 mm
Housing width
172 mm
Bearing inside diameter
40 mm
Mounting holes distance
143,5 mm
Basic radial load static
19800 N
NMounting holes diameter
14 mm
Basic radial load dynamic
34500 N
LBearing inner ring width
105 mm
Grease nipple thread diameter
M6
EAN
4054372514289
Manufacturer
INA/FAG
