INA FAG - RCJY30 - Bearing Block 4 Holes

OEM Supplier

SKU: ina-fag-rcjy30

INA FAG - RCJY30 - Bearing Block 4 Holes

€35.86

(excl. VAT)

In stock - ready to ship

Ships within 85 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€35.86

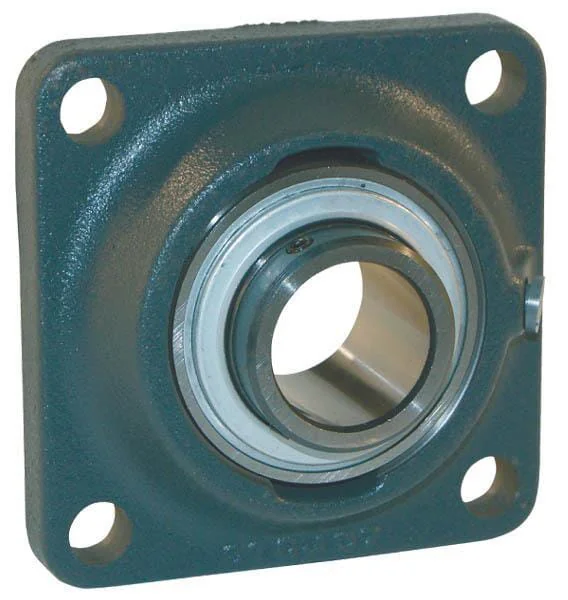

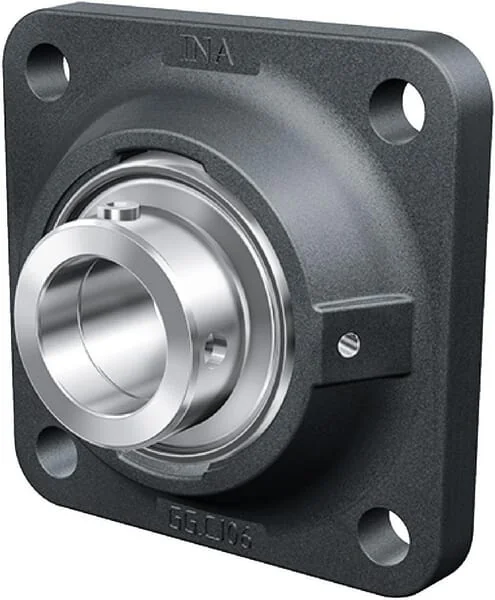

The INA-FAG RCJY30 is a robust 4-bolt flanged housing bearing unit, designed for reliable performance in industrial machinery. This unit features a 30mm bore diameter and is pre-lubricated, offering easy installation and reduced maintenance. The cast iron housing provides durability, while the integrated bearing ensures smooth operation. It is a direct replacement for original equipment, ensuring compatibility and optimal function.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
rcjy30
OEM Part Numbers
Unit
Each
Weight
1,1 kg
Properties
Inner bearing has extended inner ring with 2 adjusting screws on both sides Can be subsequently lubricated
Total width
38,1 mm
Housing type
Square flange
ATotal length
108 mm
Housing width
108 mm
UTotal height
42,2 mm
THousing height
29 mm
Mounting holes distance
82,5 mm
Basic radial load static
11300 N
KMounting holes diameter
11,5 mm
dBearing inside diameter
30 mm
Basic radial load dynamic
19500 N
LBearing inner ring width
38,1 mm
Grease nipple thread diameter
M6
Bearing balls distance to locking side end
20 mm
EAN
4012802797008
Manufacturer
INA/FAG
