INA FAG - TCJ20N - INA Flanged Housing Unit

INA FAG - TCJ20N - INA Flanged Housing Unit

€39.86

(Excl. VAT)

Price

(Excl. VAT)

€39.86

Number of products

Product Description

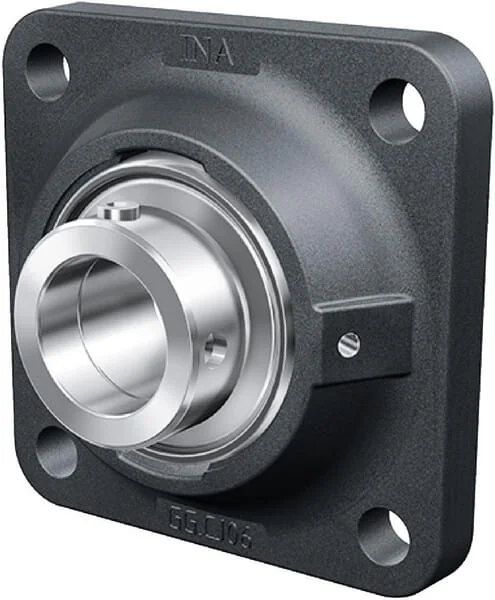

The INA TCJ20-N is a high-quality flanged housing unit from Schaeffler, designed for robust performance in various industrial and agricultural machinery. Featuring a 20mm bore diameter, this unit provides reliable support and easy mounting. Its durable cast iron construction ensures long service life and efficient operation in demanding environments, making it suitable for a wide range of applications.

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand

Part Numbers

tcj20n

Equivalent AM Part Numbers

Skf

Unit

Each

Weight

0,62 kg

Benefits

Very good protection against contamination

Properties

Inner bearing has extended inner ring with clamp ring on both sides Subsequent lubrication possible

Consists of

Bearing block Clamp ring

Housing type

Square flange

Total height

45,6 mm

Housing width

86 mm

LTotal length

86 mm

Flange thickness

9,5 mm

Application range

Mobile mechanical engineering Stationary mechanical engineering

Bearing inside diameter

20 mm

Mounting holes distance

63,5 mm

Basic radial load static

6600 N

NMounting holes diameter

11,5 mm

Basic radial load dynamic

13600 N

Grease nipple thread diameter

M6

EAN

4012802817607

Manufacturer

INA/FAG
