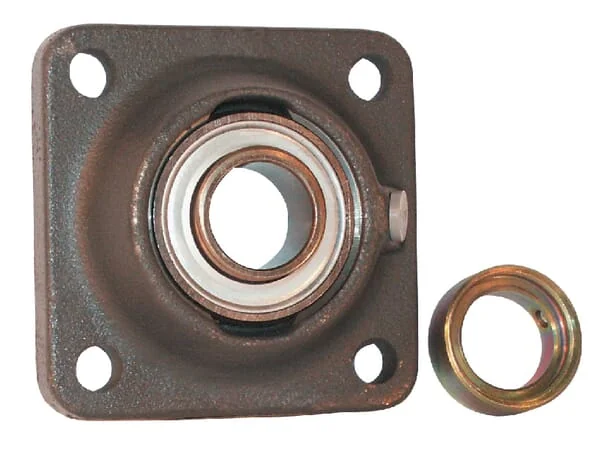

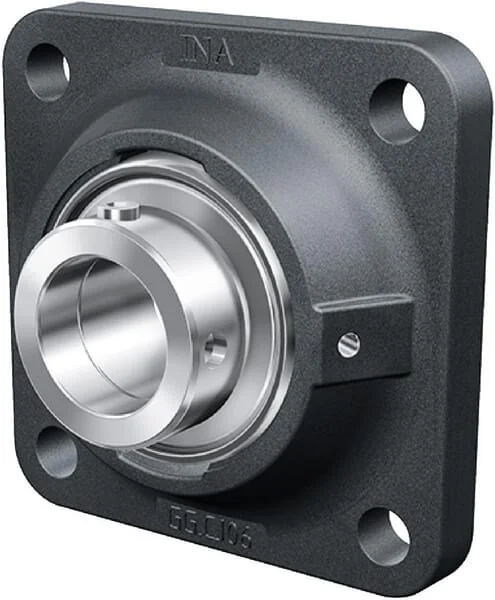

INA FAG - TCJ40N - INA Flanged Housing Unit

OEM Supplier

SKU: ina-fag-tcj40n

INA FAG - TCJ40N - INA Flanged Housing Unit

€71.51

(excl. VAT)

In stock - ready to ship

Ships within 82 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€71.51

The INA-FAG TCJ40-N is a robust flanged housing unit designed for reliable performance in various industrial machinery. It features a durable cast iron housing (J-series) and incorporates a deep groove ball bearing, providing excellent load capacity and operational efficiency. This unit is part of the INA-FAG range, known for its precision engineering and quality. Ideal for applications requiring secure mounting and efficient power transmission.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
tcj40n
Unit
Each
Weight
2,02 kg
Benefits
Very good protection against contamination
Properties
Inner bearing has extended inner ring with clamp ring on both sides Subsequent lubrication possible
Consists of
Bearing block Clamp ring
Housing type
Square flange
Total height
59,1 mm
Housing width
130 mm
LTotal length
130 mm
Flange thickness
12,5 mm
Application range
Mobile mechanical engineering Stationary mechanical engineering
Bearing inside diameter
40 mm
Mounting holes distance
101,5 mm
Basic radial load static
19800 N
NMounting holes diameter
14 mm
Basic radial load dynamic
34500 N
Grease nipple thread diameter
M6
EAN
4012802799118
Manufacturer
INA/FAG
