Maintenance & Wear Parts

Bearing Housings

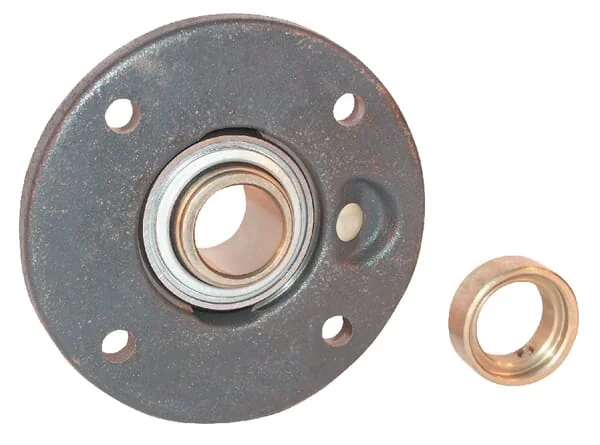

INA FAG - TME45 - Housing Unit Tme

INA FAG - TME45 - Housing Unit Tme

INA FAG - TME45 - Housing Unit Tme

INA FAG - TME45 - Housing Unit Tme

INA FAG - TME45 - Housing Unit Tme

Number of products

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Free shipping

Pay Securely with

INA FAG - TME45 - Housing Unit Tme

INA FAG - TME45 - Housing Unit Tme

€97.43

(Excl. VAT)

Price

(Excl. VAT)

€97.43

Number of products

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand

Unit

Each

Weight

1,98 kg

Benefits

Very good protection against contamination

Properties

Inner bearing has extended inner ring with clamp ring on both sides Subsequent lubrication possible

Consists of

Bearing block Clamp ring

Total width

56,5 mm

Housing type

Round flange

Total height

32,9 mm

Housing width

155 mm

THousing height

25 mm

Bearing material

Steel

Application range

Mobile mechanical engineering Stationary mechanical engineering

CFlange thickness

12 mm

ZFitting edge diameter

105 mm

Basic radial load static

20400 N

KMounting holes diameter

14 mm

dBearing inside diameter

45 mm

Basic radial load dynamic

32500 N

LBearing inner ring width

56,5 mm

Grease nipple thread diameter

M6

Locking ring outside diameter

63 mm

Manufacturer

INA/FAG
