INA FAG - TME55 - Flanged Bearing Unit
OEM Supplier
SKU: ina-fag-tme55




€132.91
(excl. VAT)Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Shipping fee: €6.00 excl. VAT
Pay Securely with

INA FAG - TME55 - Flanged Bearing Unit
€132.91
(Excl. VAT)
Price
(Excl. VAT)
€132.91

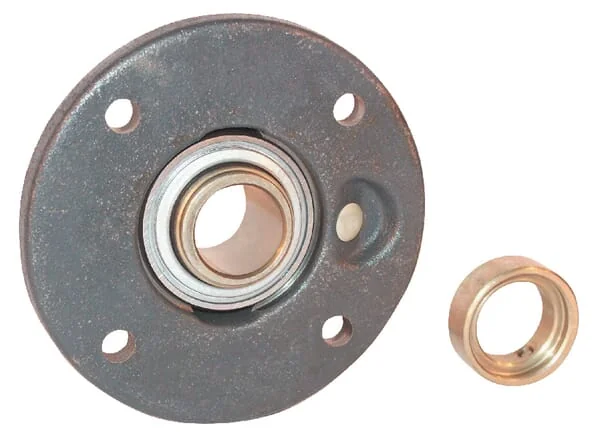

The INA TME55 is a robust flanged bearing unit designed for applications primarily subjected to radial loads. This ready-to-fit unit comprises a durable cast iron flanged housing (FTE09) and a high-quality insert bearing (GE55-KRR-B). Featuring a 55mm bore diameter, it offers easy installation and reliable performance. The unit has a dynamic load rating of 32.5 kN and a static load rating of 21.6 kN, with a limiting speed of 3000 rpm. Its flange diameter is 140mm, with bolt hole centers at 110mm. It is suitable for various industrial and agricultural machinery.
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components.
The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments.
At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao.
INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.
Product Details
Brand
Part Numbers
tme55
Unit
Each
Weight
3,55 kg
Benefits
Very good protection against contamination
Properties
Inner bearing has extended inner ring with clamp ring on both sides Subsequent lubrication possible
Consists of
Bearing block Clamp ring
Total width
71,4 mm
Housing type
Round flange
Total height
43,6 mm
Housing width
185 mm
THousing height
27,5 mm
Bearing material
Steel
Application range
Mobile mechanical engineering Stationary mechanical engineering
CFlange thickness
15 mm
ZFitting edge diameter
125 mm
Basic radial load static
29000 N
KMounting holes diameter
18 mm
dBearing inside diameter
55 mm
Basic radial load dynamic
43500 N
LBearing inner ring width
71,4 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
76 mm
EAN
4012802823103
Manufacturer
INA/FAG
