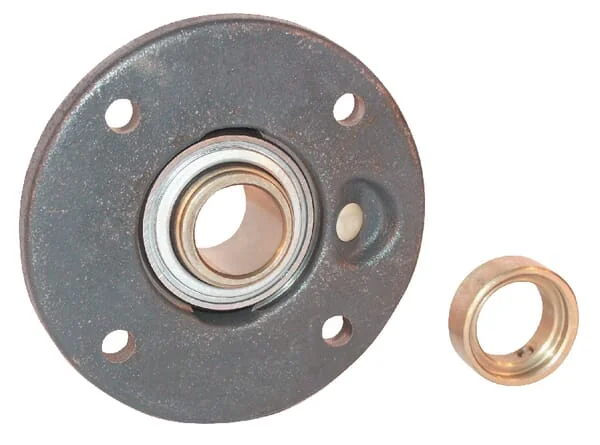

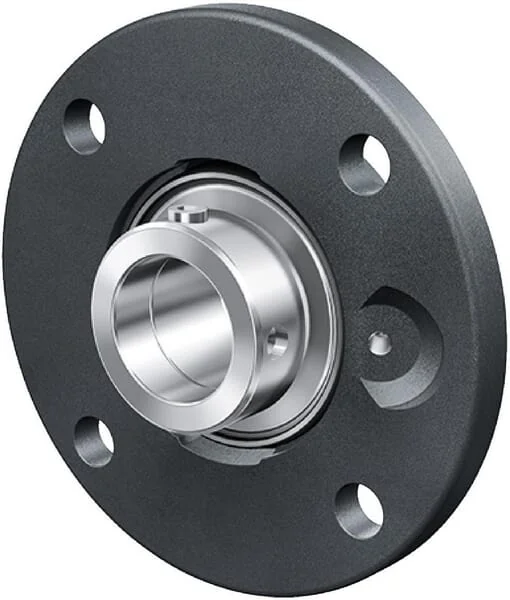

INA FAG - TME60N - Housing Unit Tme

OEM Supplier

SKU: ina-fag-tme60n

INA FAG - TME60N - Housing Unit Tme

€171.27

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€171.27

INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
tme60n
Unit
Each
Weight
4,04 kg
Benefits
Very good protection against contamination
Properties
Inner bearing has extended inner ring with clamp ring on both sides Subsequent lubrication possible
Consists of
Bearing block Clamp ring
Total width
77,9 mm
Housing type
Round flange
Total height
45,9 mm
Housing width
195 mm
THousing height
29 mm
Bearing material
Steel
Application range
Mobile mechanical engineering Stationary mechanical engineering
CFlange thickness
16 mm
ZFitting edge diameter
135 mm
Basic radial load static
36000 N
KMounting holes diameter
18 mm
dBearing inside diameter
60 mm
Basic radial load dynamic
54000 N
LBearing inner ring width
77,9 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
84 mm
EAN
4012802817904
Manufacturer
INA/FAG
