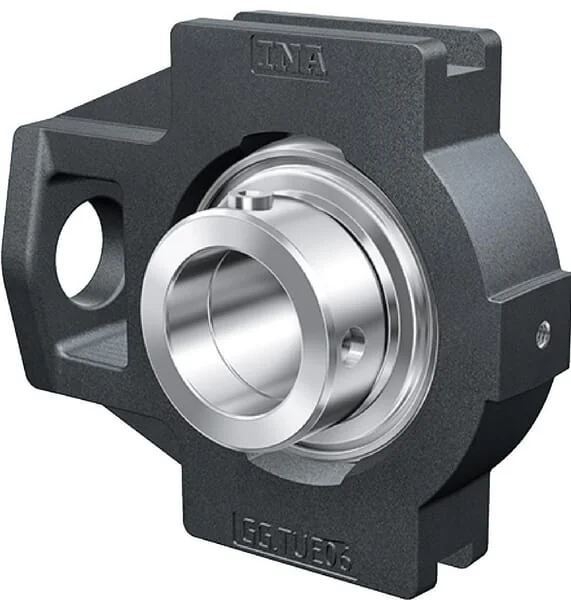

INA FAG - TTUE35 - INA Take-Up Bearing Unit
INA FAG - TTUE35 - INA Take-Up Bearing Unit
INA FAG - TTUE35 - INA Take-Up Bearing Unit
INA FAG - TTUE35 - INA Take-Up Bearing Unit
INA FAG - TTUE35 - INA Take-Up Bearing Unit

In stock - ready to ship

Order now for delivery between 4 May and 7 May
Free shipping

Pay Securely with

INA FAG - TTUE35 - INA Take-Up Bearing Unit

INA FAG - TTUE35 - INA Take-Up Bearing Unit

€67.82

(Excl. VAT)

Price

(Excl. VAT)

€67.82

Product Description

The INA-FAG TTUE35 is a high-quality take-up bearing unit, manufactured by INA-FAG, a trusted name in bearing technology. This robust unit is engineered for durability and efficient operation, suitable for a wide range of industrial machinery requiring precise shaft alignment and tensioning. It features a bore diameter of 35 mm, ensuring a secure fit and smooth rotation. Ideal for replacement or new installations where reliable bearing support is critical.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
Weight
1,73 kg
Benefits
Very good protection against contamination
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Total width
102 mm
Total height
102 mm
ATotal length
131,5 mm
VHousing width
102 mm
MHousing length
89 mm
DGuide groove width
12 mm
WGuide groove length
63 mm
HShaft vertical distance
80 mm
K1Mounting thread length
36,5 mm
KMounting holes diameter
22 mm
dBearing inside diameter
35 mm
LBearing inner ring width
51,3 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
51 mm
OBearing balls distance to mounting surface
32,3 mm
Manufacturer
INA/FAG
