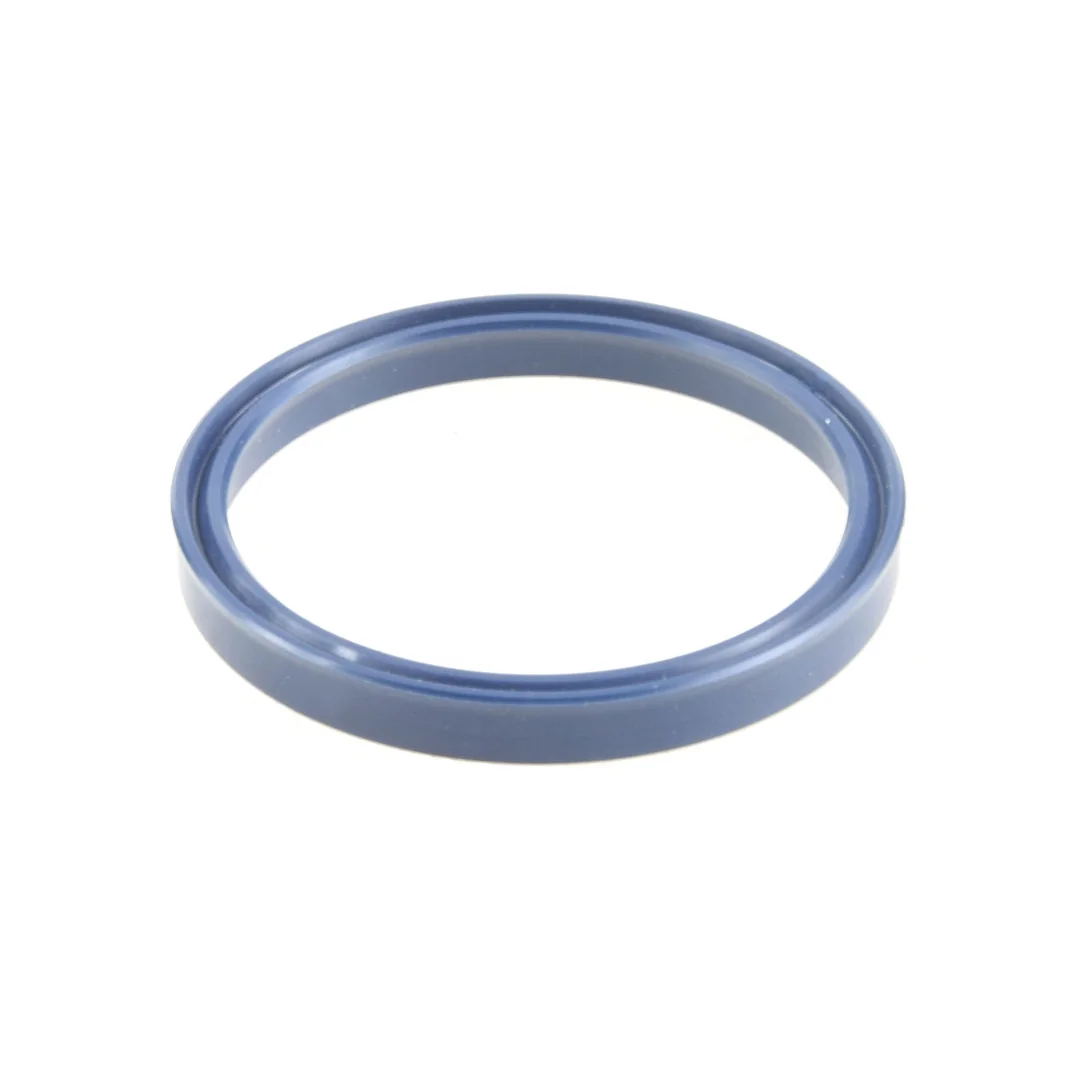

JAG - 239408.02 - Claas Lift Cylinder Sealing Ring
JAG - 239408.02 - Claas Lift Cylinder Sealing Ring
JAG - 239408.02 - Claas Lift Cylinder Sealing Ring
JAG - 239408.02 - Claas Lift Cylinder Sealing Ring
JAG - 239408.02 - Claas Lift Cylinder Sealing Ring
JAG - 239408.02 - Claas Lift Cylinder Sealing Ring

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

JAG - 239408.02 - Claas Lift Cylinder Sealing Ring

JAG - 239408.02 - Claas Lift Cylinder Sealing Ring

€6.97

(Excl. VAT)

Price

(Excl. VAT)

€6.97

Product Description

This seal ring fits the hydraulic lift cylinder on a self-propelled harvester. It sits in the groove between the cylinder bore and the piston, preventing pressurized oil from leaking past the piston during lifting and holding operations. A worn or hardened seal allows internal bypass, which causes the lift arm to drift downward under load and reduces the cylinder's holding force. The seal is molded to match the original groove profile so it seats without twisting during installation. Lubricate the seal and the cylinder bore before assembly to prevent rolling or pinching.
Jag

Product Details

Brand
JAG
Height
8 mm
Location
Hydraulic cylinder
Application
Harvesting machines
Inner Diameter
55 mm
Outer Diameter
63 mm
Catalogue Number
Claas 0002394082, Claas 239408.2
Manufacturer
JAG
