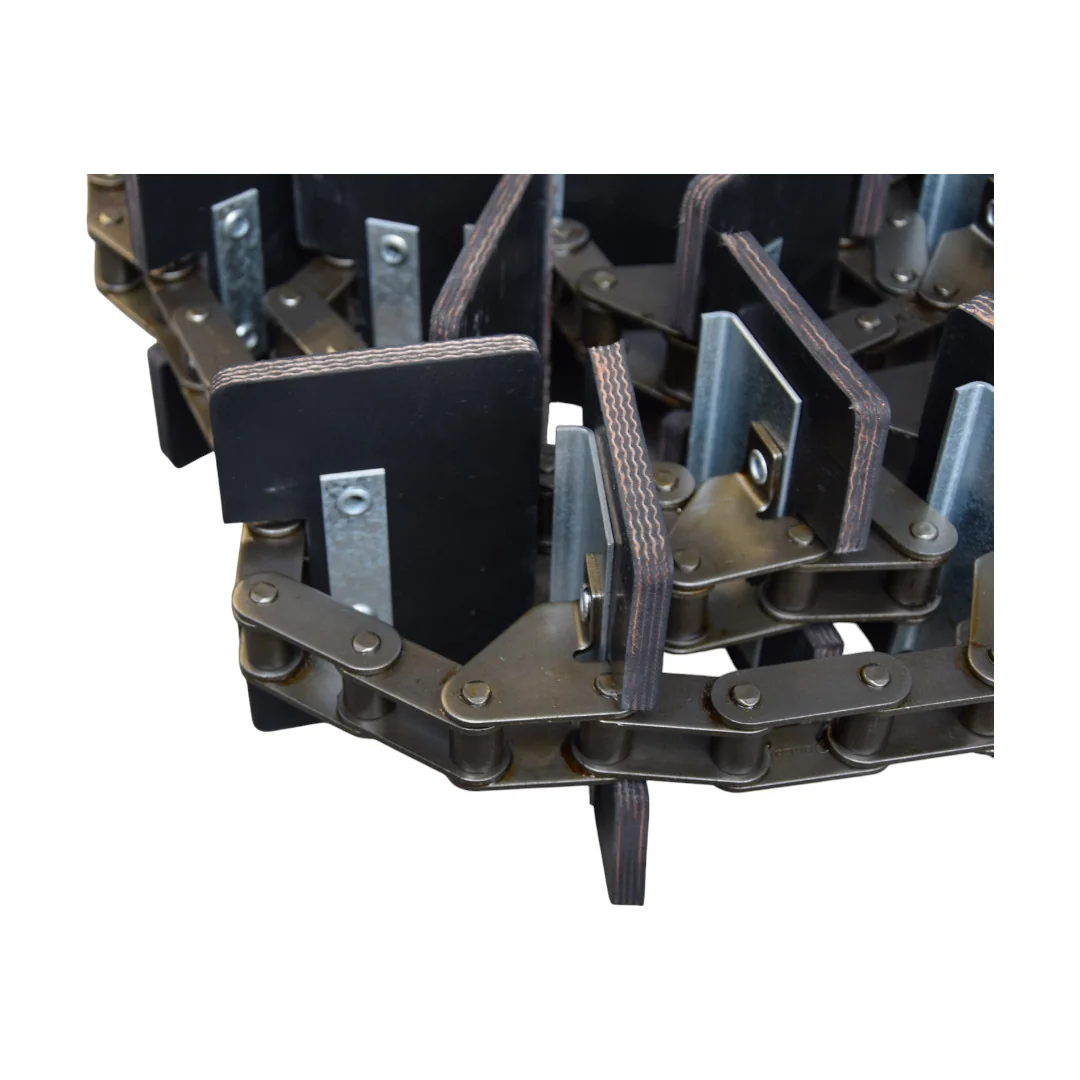

JAG - 541782.02 - Claas Grain Conveyor Chain 38,4-VB
JAG - 541782.02 - Claas Grain Conveyor Chain 38,4-VB
JAG - 541782.02 - Claas Grain Conveyor Chain 38,4-VB
JAG - 541782.02 - Claas Grain Conveyor Chain 38,4-VB
JAG - 541782.02 - Claas Grain Conveyor Chain 38,4-VB
JAG - 541782.02 - Claas Grain Conveyor Chain 38,4-VB

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

JAG - 541782.02 - Claas Grain Conveyor Chain 38,4-VB

JAG - 541782.02 - Claas Grain Conveyor Chain 38,4-VB

€253.09

(Excl. VAT)

Price

(Excl. VAT)

€253.09

Product Description

This chain assembly drives the paddle conveyor that moves grain across the straw walkers in the cleaning section of a combine harvester. It transmits motion from the drive sprocket to the paddle bars, which sweep material toward the rear of the machine. A worn or stretched chain causes paddle timing to drift, leading to uneven material flow and reduced separation efficiency. The set includes a half link for length adjustment during installation. This component is manufactured to match the original chain pitch and link geometry so that it seats correctly on the existing sprockets without requiring modification to the drive system.
Jag

Product Details

Brand
JAG
Fits

Claas

Medion 310Medion 320Medion 330Medion 340Mega 350Mega 360Mega 370
Type
38.4-VB
Paddle
154 x 100 x 10 mm (0006054501)
Location
Straw walkers
Application
Harvesting machines
Chain Pitch
38.4 mm
Pin Diameter
8.28 mm
Product Type
Chain
Set Includes
Half link (0006805481)
Number Of Links
139
Roller Diameter
15.88 mm
Inner Link Width
19.05 mm
Manufacturer
JAG
